Measure of a GNSS point

Rapid measure of a GNSS point

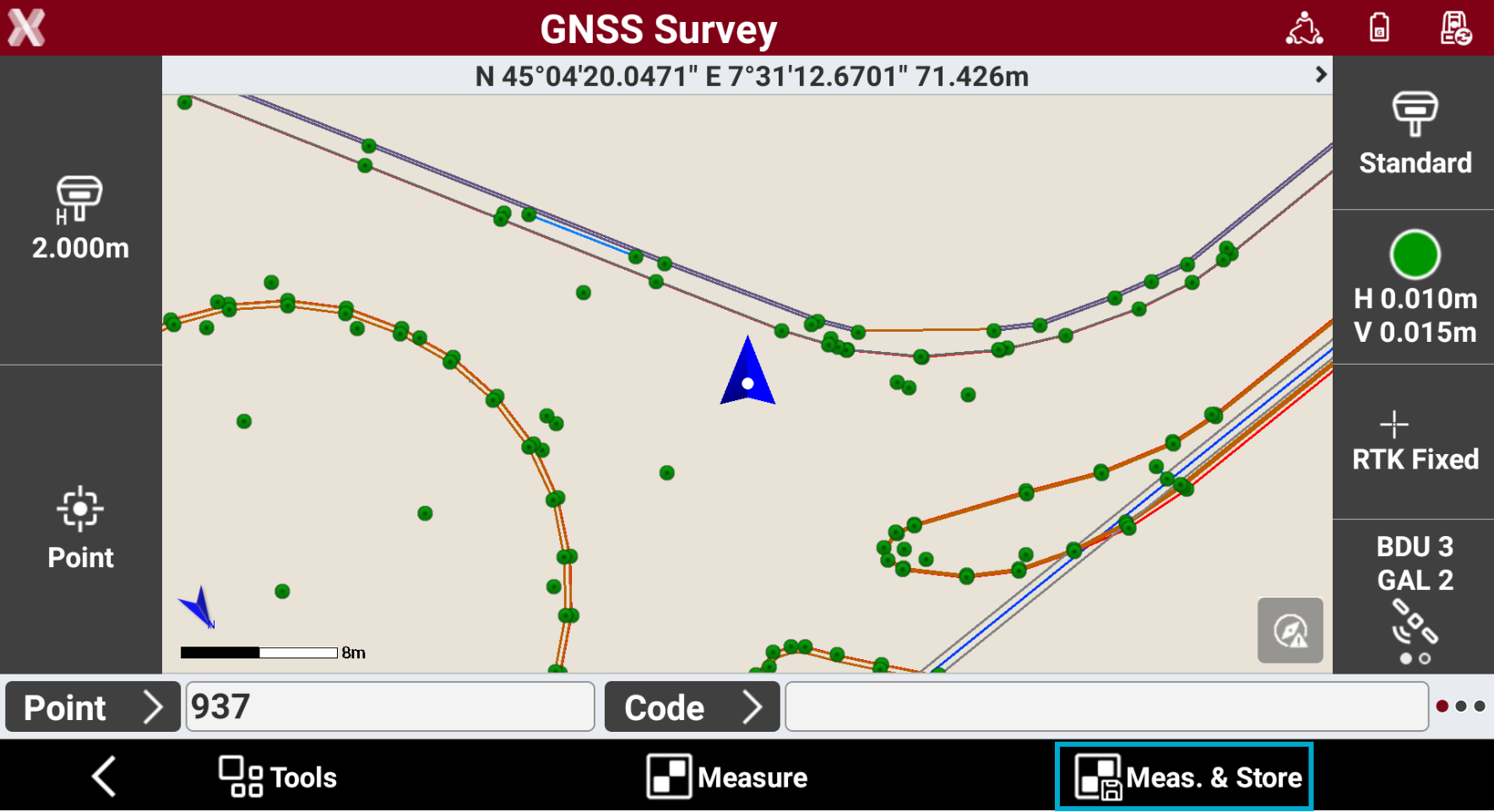

Meas & Store button allows to automatically measure and record the point.
Enter the point ID in Point field.
Enter the survey code in Code field or select an existing code.
Press Meas & Store button. The point measurement starts. The point is saved automatically.
The acquisition of positions for the number of epochs set in survey parameters starts.

The epochs are acquired if the conditions defined for accuracy checks defined in GNSS Settings are met.
Otherwise the software keeps waiting for a manual stop or until the conditions are met.

When the number of defined epochs is reached, the point is saved. The name of next point is automatically suggested.
If GIS feature are required for a point code, a window for entering the attributes opens.

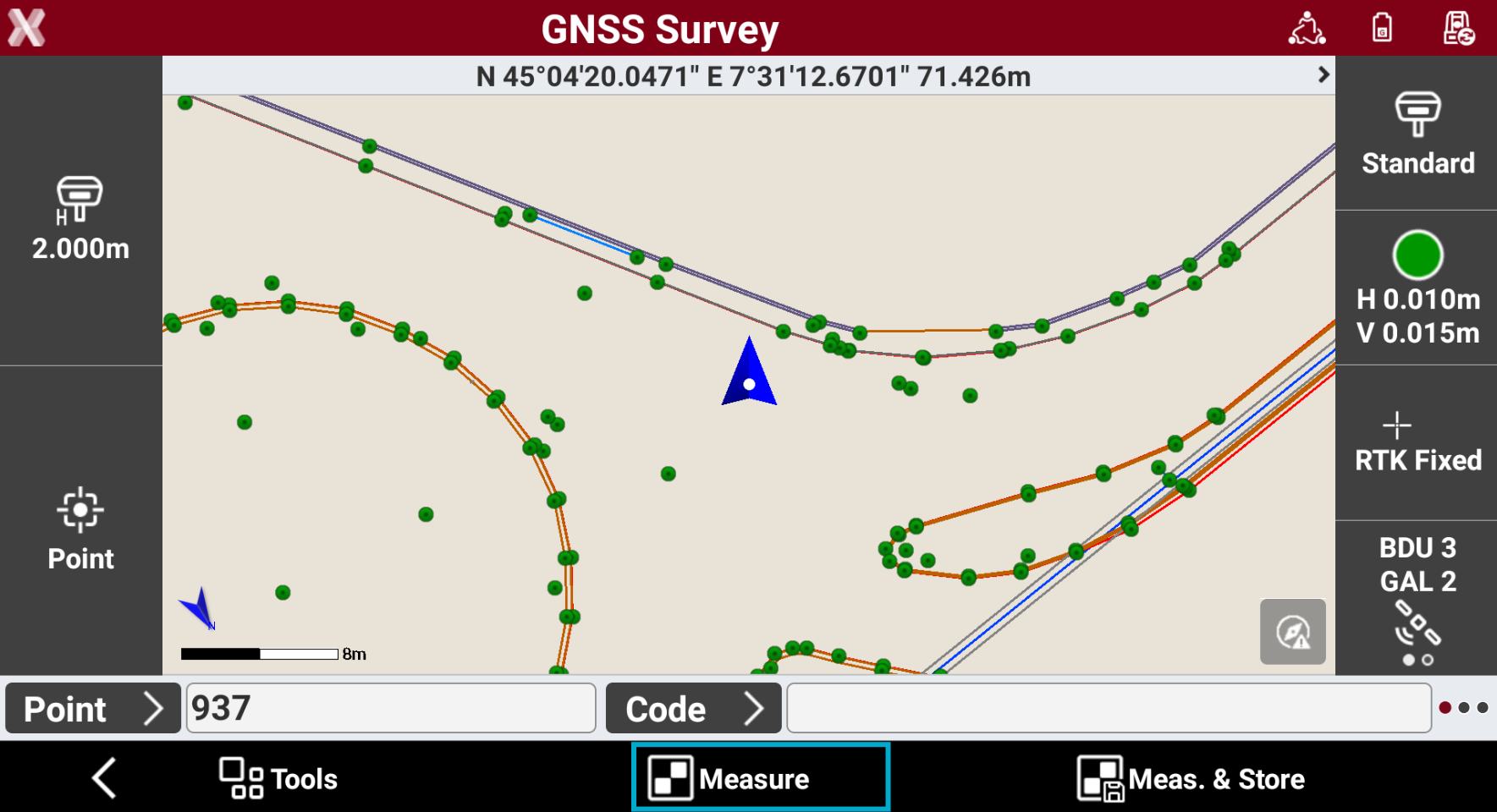

Measure allows to measure a point and review the results before storing it.
Enter the point ID in Point field.
Enter the survey code in Code field or select an existing code.
Press Meas & Store button. The point measurement starts. The point is saved automatically.
The acquisition of positions for the number of epochs set in survey parameters starts.

The epochs are acquired if the conditions defined for accuracy checks defined in GNSS Settings are met.
Otherwise the software keeps waiting for a manual stop or until the conditions are met.

When the number of defined epochs is reached, the point is saved. The name of next point is automatically suggested.
If GIS feature are required for a point code, a window for entering the attributes opens.

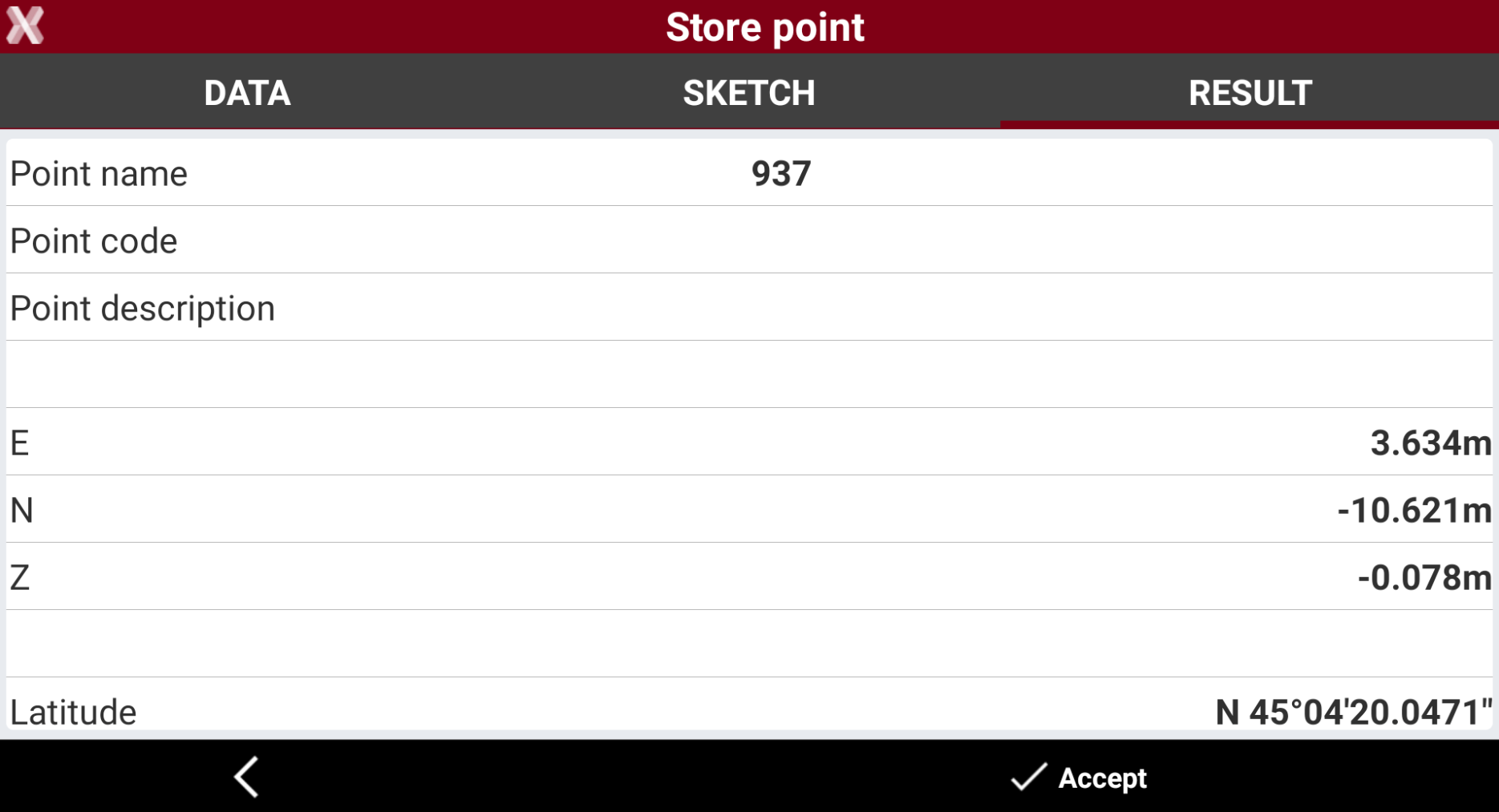

The software opens the Store point page to review and enter the data. Press Accept to save the point.

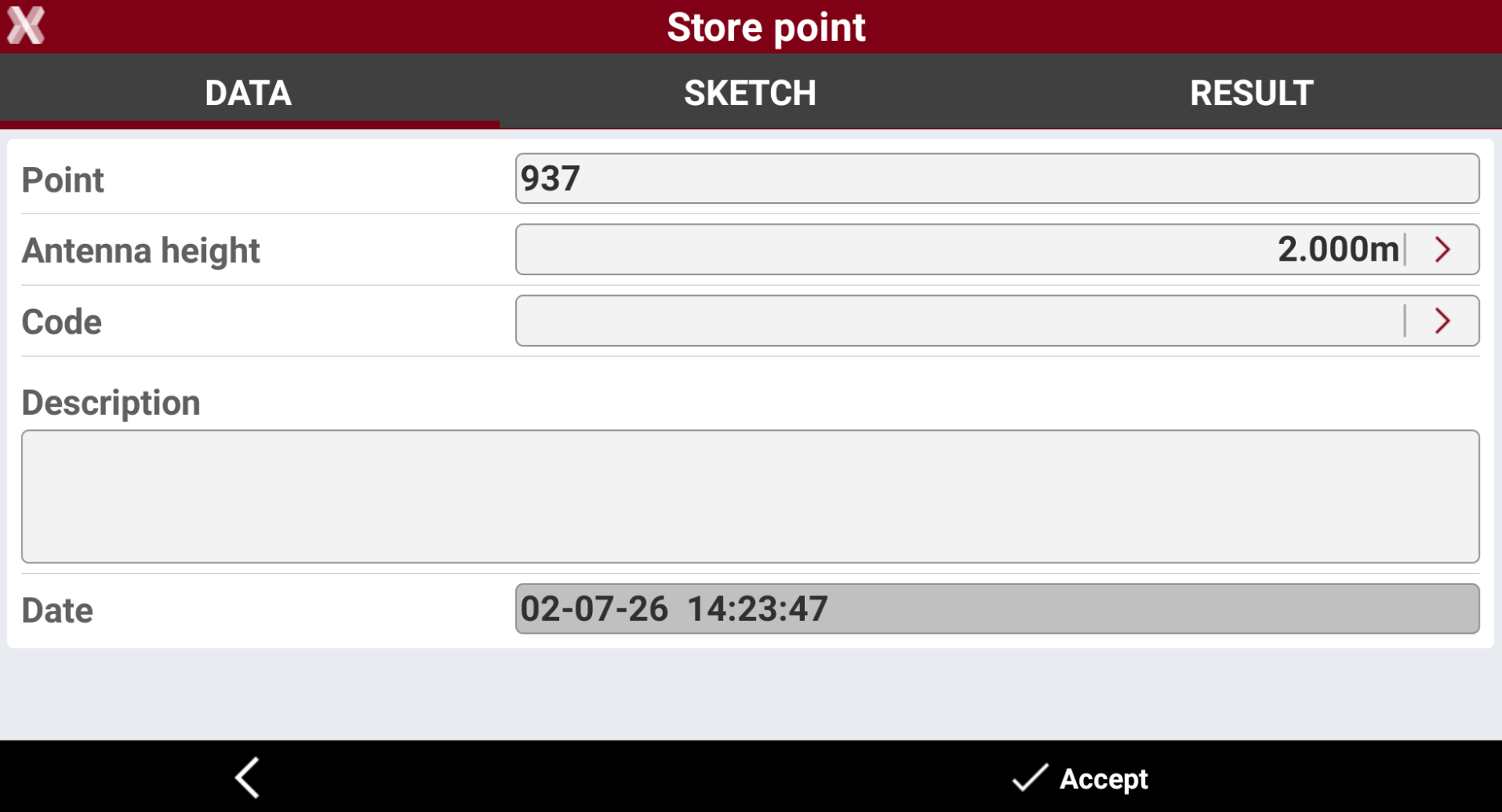

The Data page shows the main point information.
- Point: name of the point to store.
- Antenna height: elevation of the antenna at the moment of the acquisition of the point.
- Code: code assigned to the point.
- Description: extended description associated to the point.

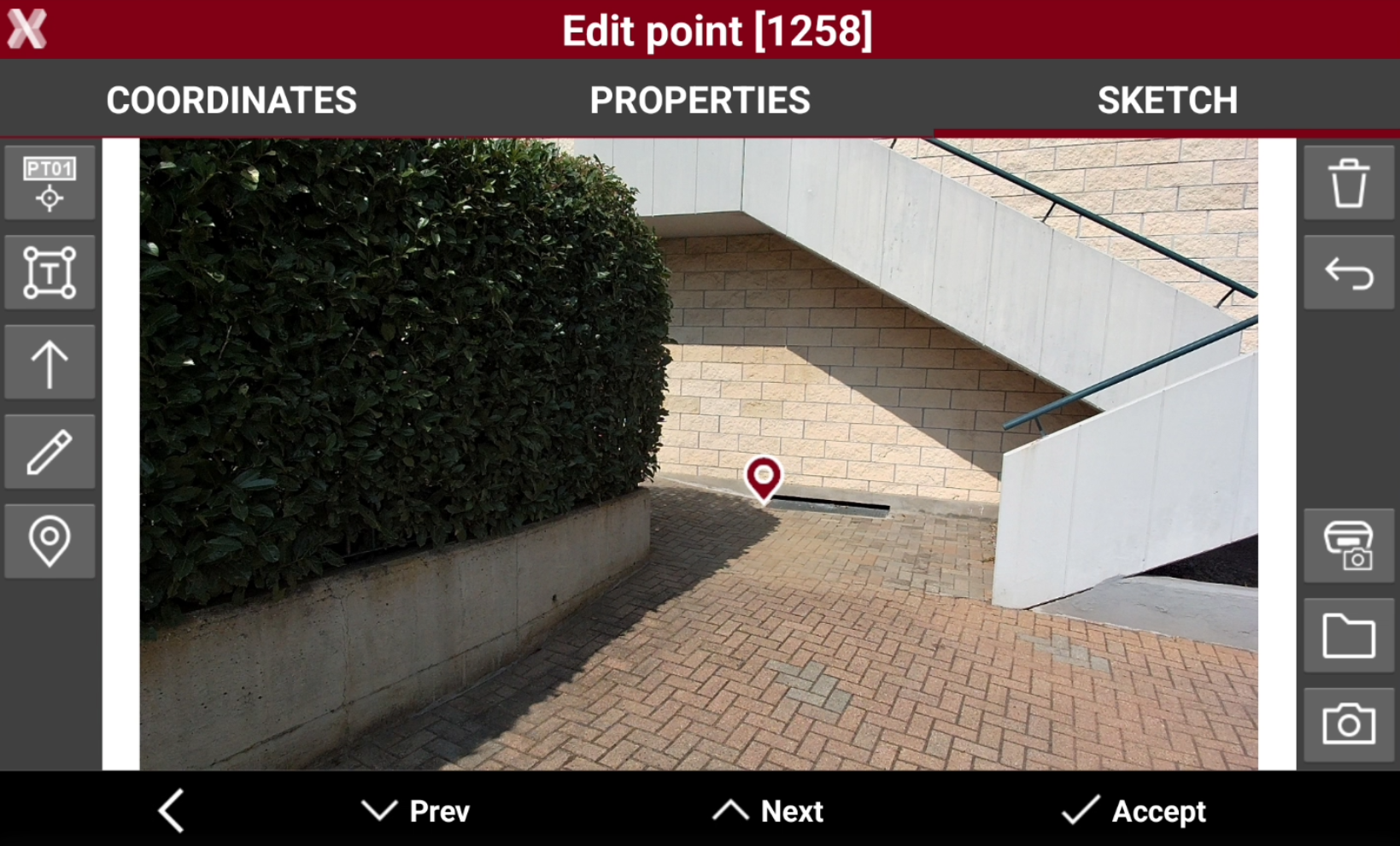

Sketch page allows to view the photo assigned to a point, load or take a new photo or draw on the image to have a picture of the topographic point.
- : creates a text box with point name, coordinates and codes on the picture. Press and drag to move the text box.
- : creates a text box with free text. Press and drag to move the text box.
- : creates an arrow. Press and drag to move the arrow. Tap on to change icon to rotation to rotate the arrow.
- : enables the free drawing mode. In free drawing mode it is possible to draw on the image.
- : takes a photo using the GNSS receiver cameras. Available for GNSS receiver with imaging.
- : creates a marker element. Press and drag to move the marker.
- : deletes sketch and photo.
- : restores original content.
- : loads a photo from the controller internal memory. The image must be in the Images folder and has to be in .jpg or .jpeg format.
- : takes a photo using controller camera.
