Static survey of points

Static survey records raw GNSS data from the receiver, which is then post-processed to determine a highly accurate position.

Open the Survey page.

Select Static survey.

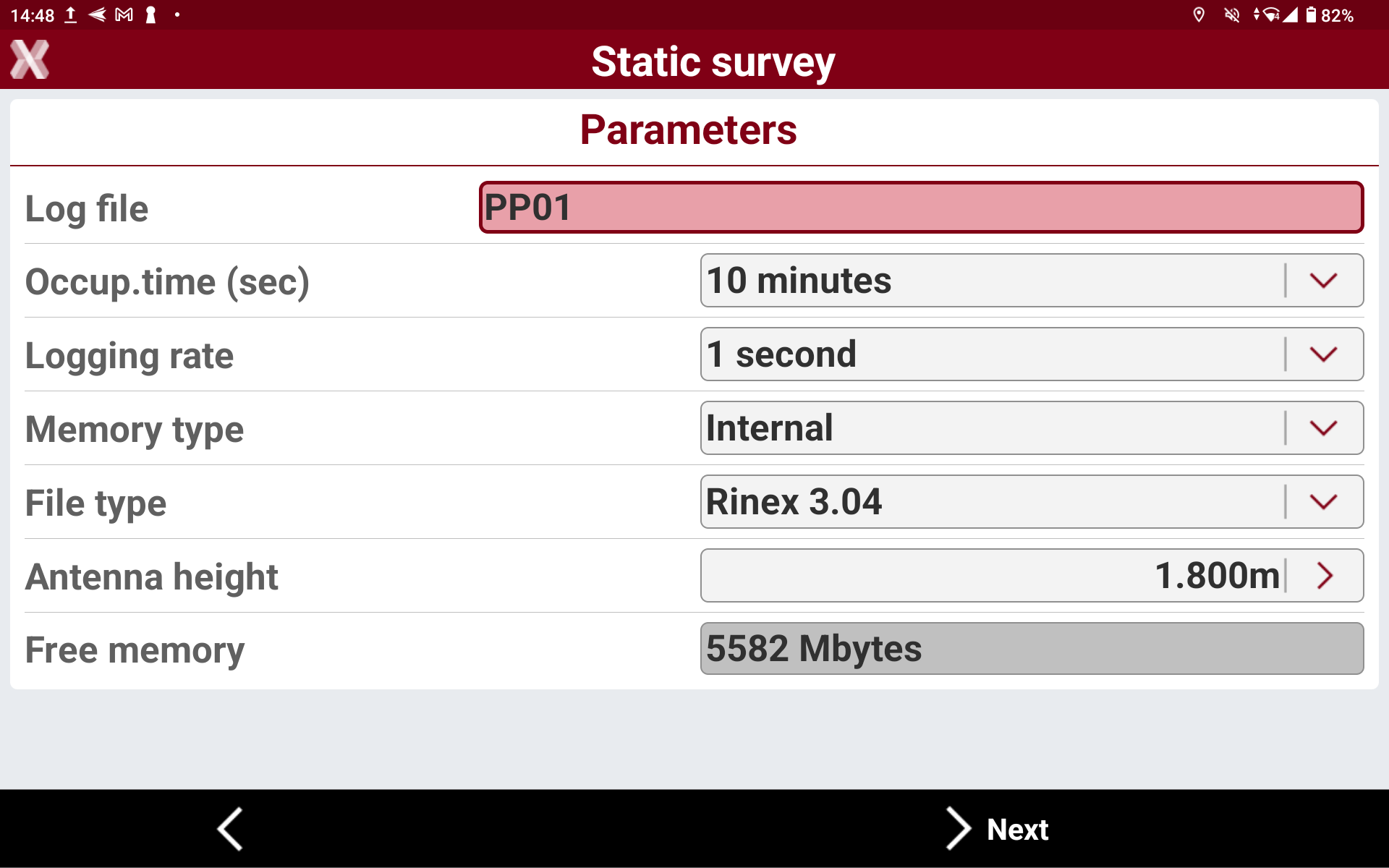

Define the parameters necessary to execute the recording of raw data.

• Log file: name to assign to the log file that contains data of the occupation.

• Logging rate: frequency with which to record data for post-processing.

• Occup.time: occupation time of the point. Set a default time or choose the Custom option. In this case, the stop of the point occupation has to be made manually.

• Memory type: available on some receiver models. Receiver internal memory or SD card.

• File type: sets the file’s type to store.

• Antenna height: sets the height of antenna to store.

Tap Next to proceed.

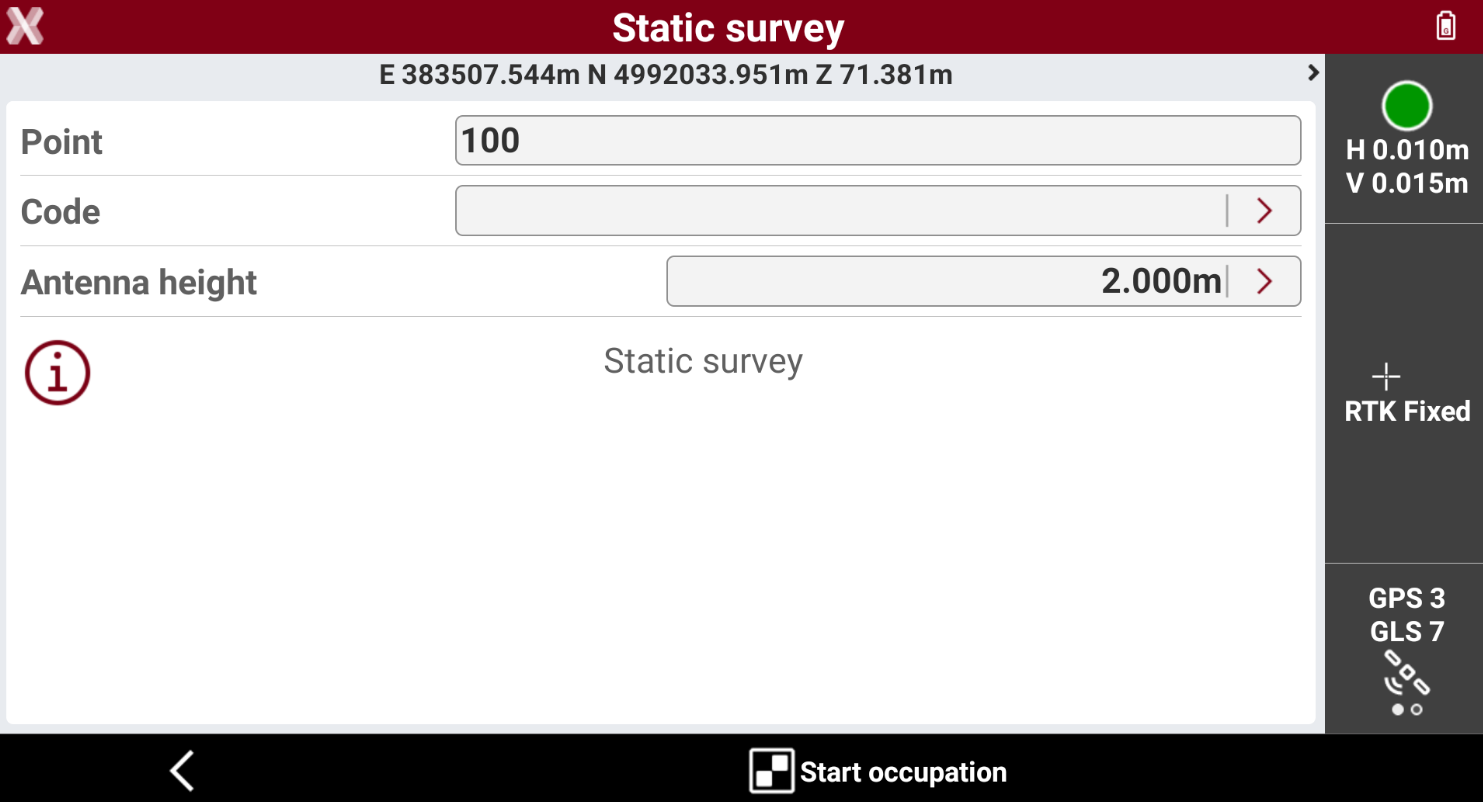

Press Start occupation to start the recording.

The static measuring of the positions starts. Receiver begins data recording inside the controller or in its internal memory.

If the time of occupation has been defined, a counter of the remaining time is displayed. Otherwise a counter shows the time since the beginning of the occupation.

Tap to stop measuring.

At the end of the occupation or after a stop, the command asks a confirmation of the data of the point.
