Stakeout points

Stakeout points function allows to stakeout single topographic points.

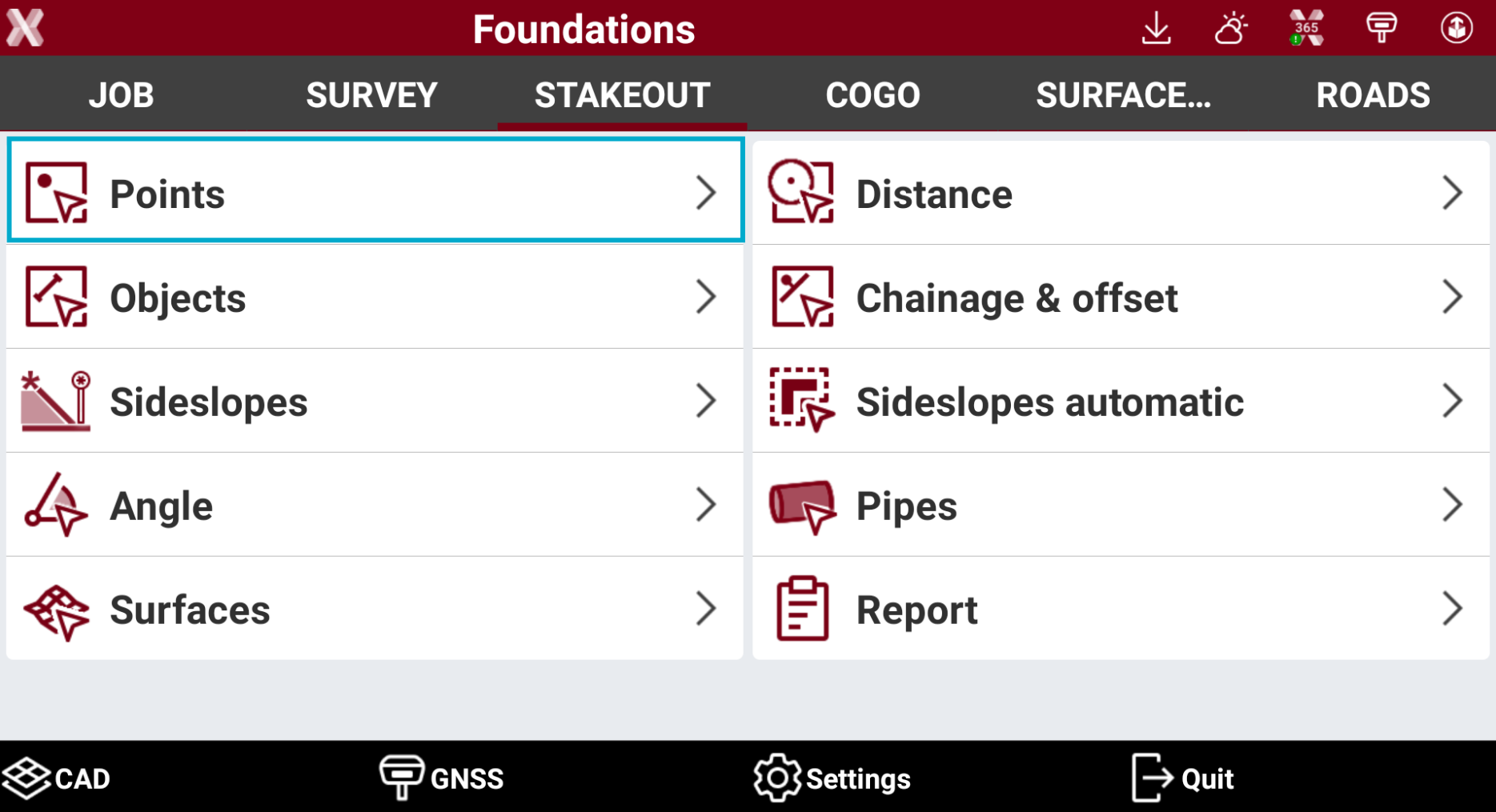

Open the Stakeout page.

Select Points.

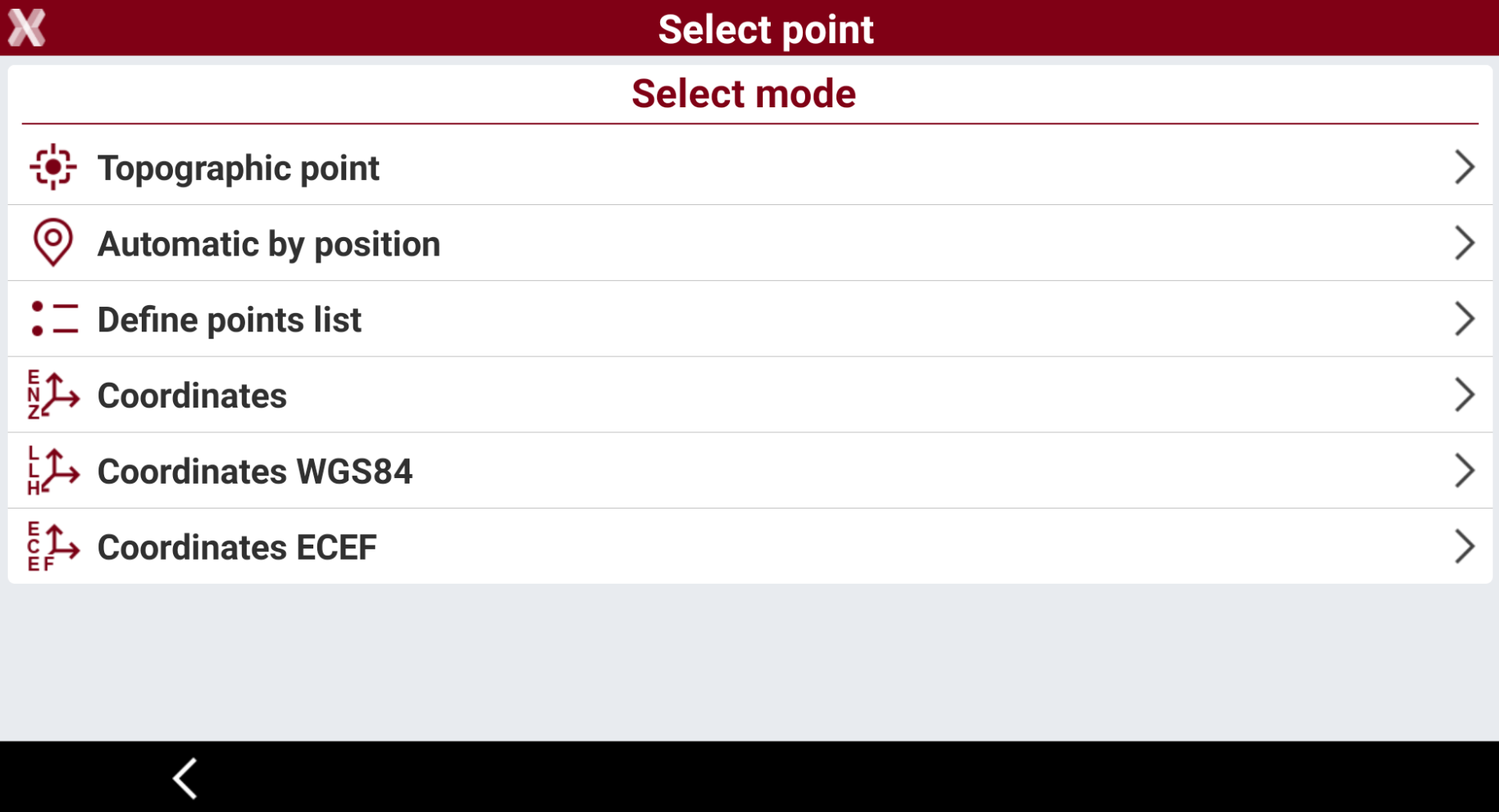

Select the stakeout mode.

• Topographic point: the nearest topographic point is selected automatically according to the position of the receiver.

• Automatic by position: the nearest topographic or reference point to stakeout is selected automatically according to position of the receiver.

• Define points list: create a list of topographic points to stake. This option allows to create a table with a list of points to stakeout. The points can be loaded from CAD or selected from the point list. The list can be saved and loaded from a file.

• Coordinates: manual definition of East, North and elevation to stake. Coordinates can be selected from the CAD drawing using Select button.

• Coordinates WGS84: manual definition of the WGS84 coordinates to stake. The option is available when working with GNSS receivers.

• Coordinates ECEF: manual definition of the geocentric coordinates to stake. The option is available when working with GNSS receivers.

After the point to stakeout has been defined, the GNSS Point stakeout page is opened.

Refer to Stakeout - GNSS and Stakeout - TPS for the commands in this page, depending on the connected instrument.

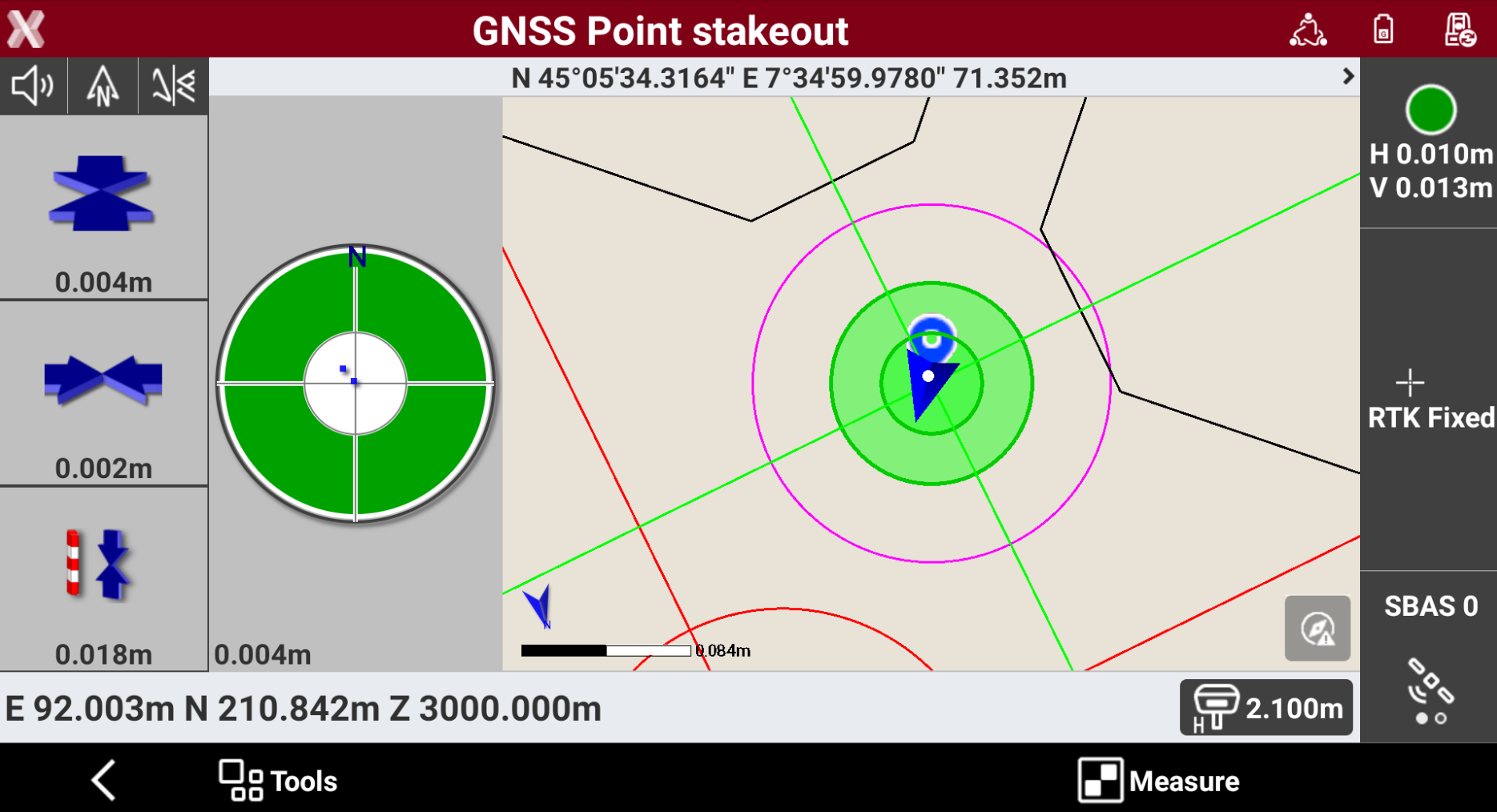

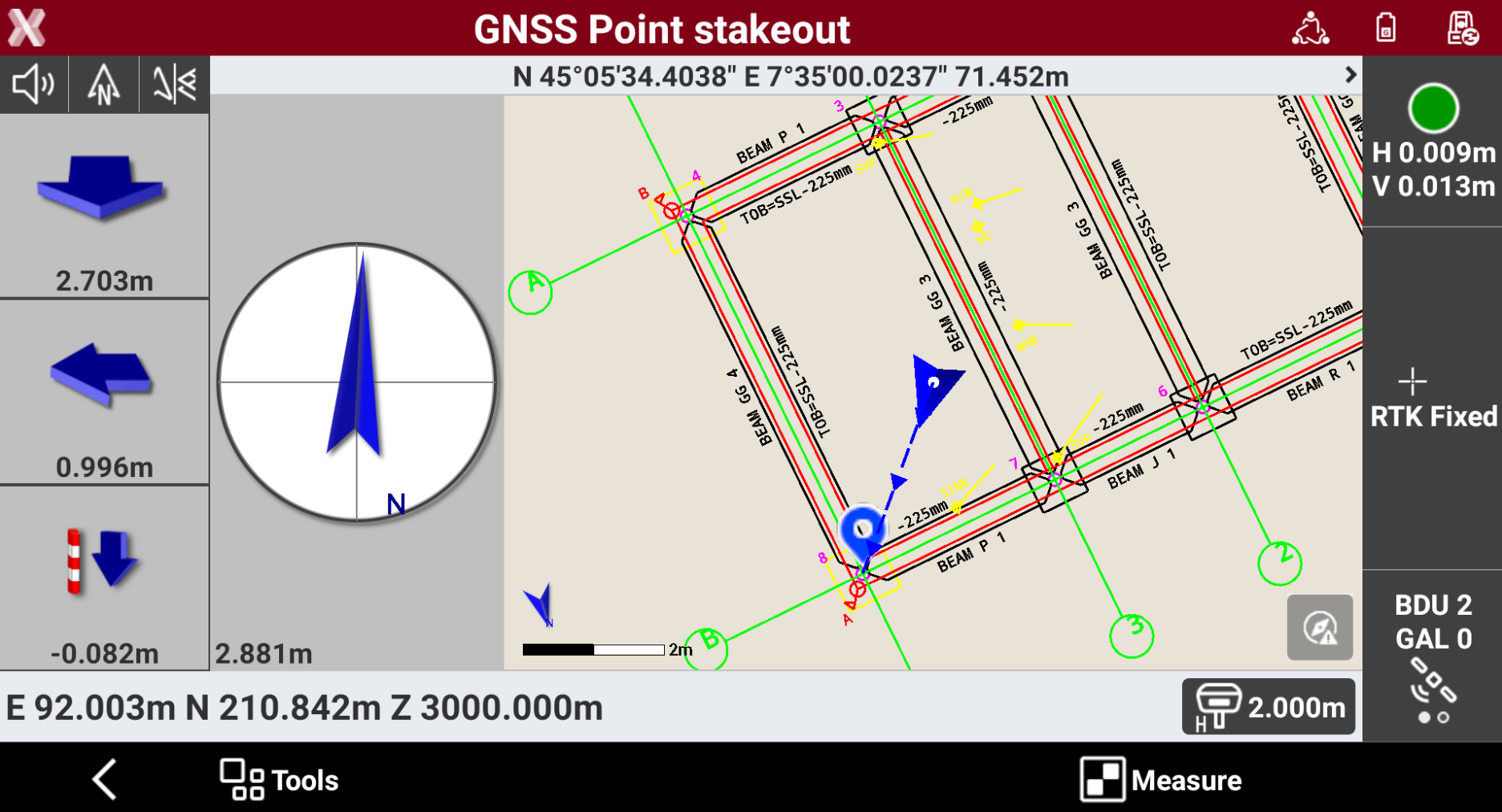

Reach the stakeout position following the indications. To store the measure press Measure and Accept to store the result

The software proposes the next point to stakeout automatically. Otherwise tap on a different object on the CAD view or click to increase the point ID numbering.

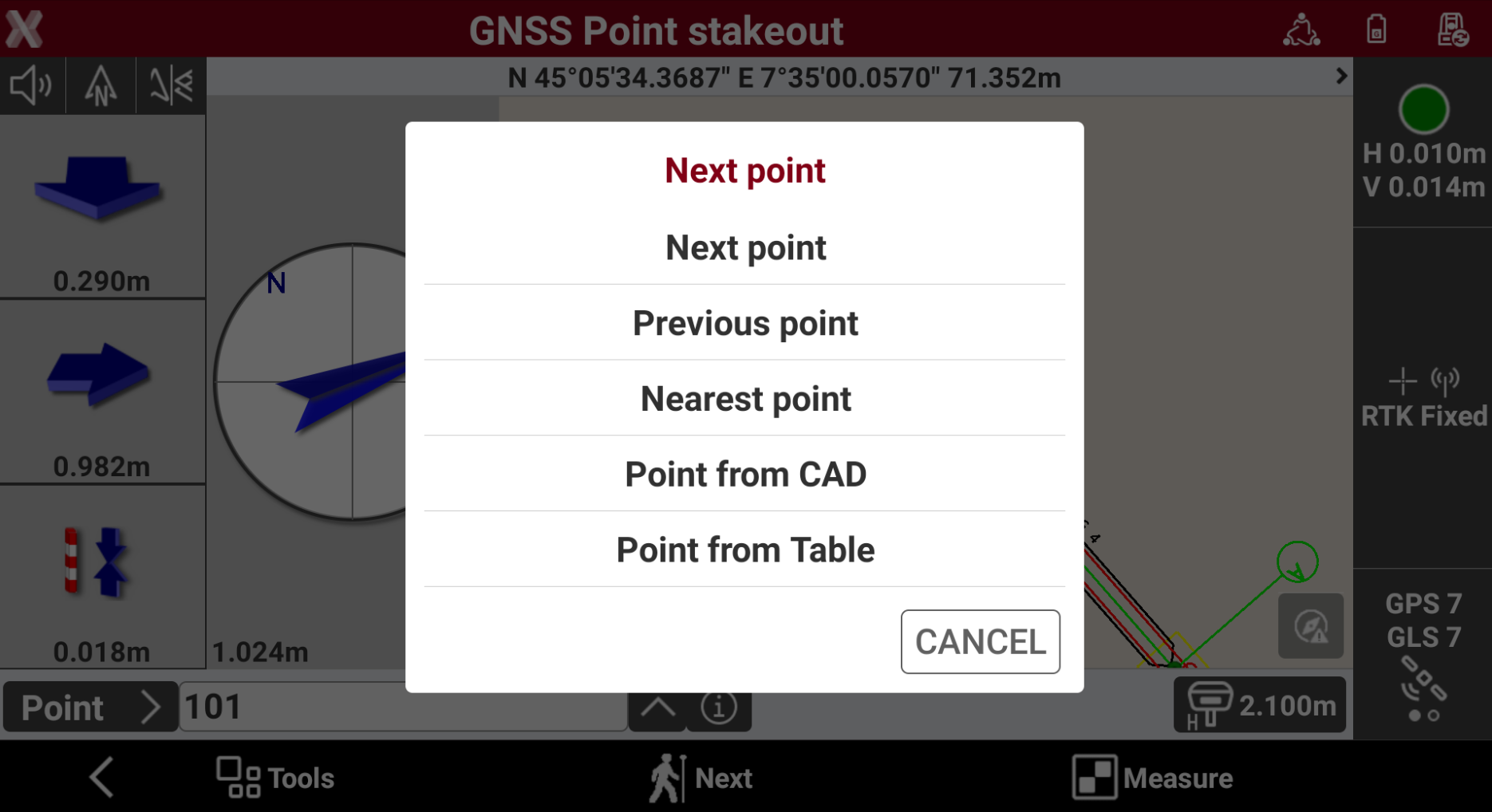

Press Next to select the next point from our of the following modes.

• Next point: the next point is suggested, according to recording order.

• Previous point: the previous point is suggested, according to recording order.

• Nearest point: the nearest point, which has not been staked yet, is suggested.

• Point from CAD: manual selection of the point to stake in the graphic window.

• Point from Table: manual selection of the point to stake from the table.
