The function allows to stakeout at a defined distance from a reference point.
-

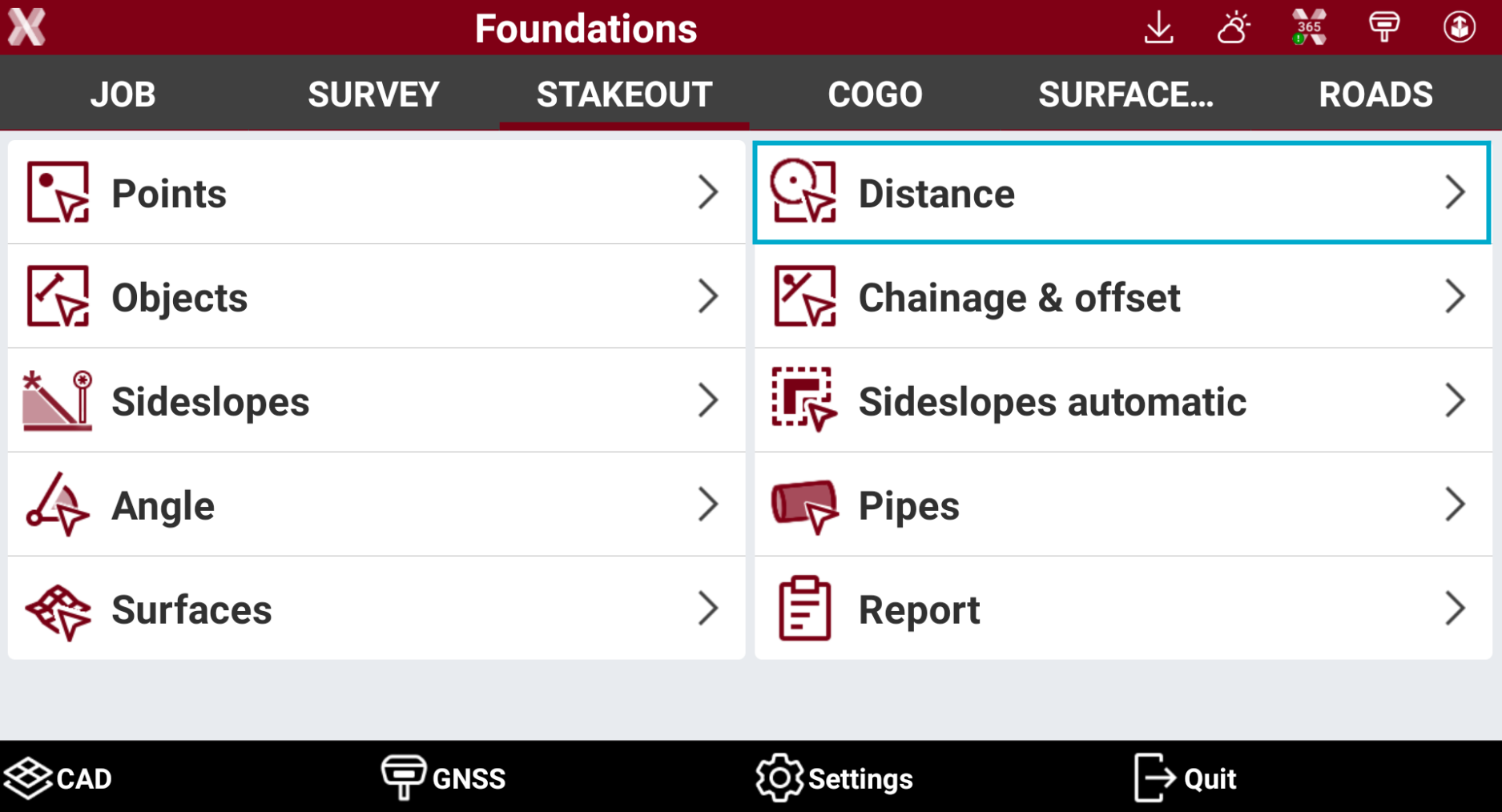

Open the Stakeout page.
-
Select Distance.
-
Select from CAD, from the list of points or measure the reference point.
-

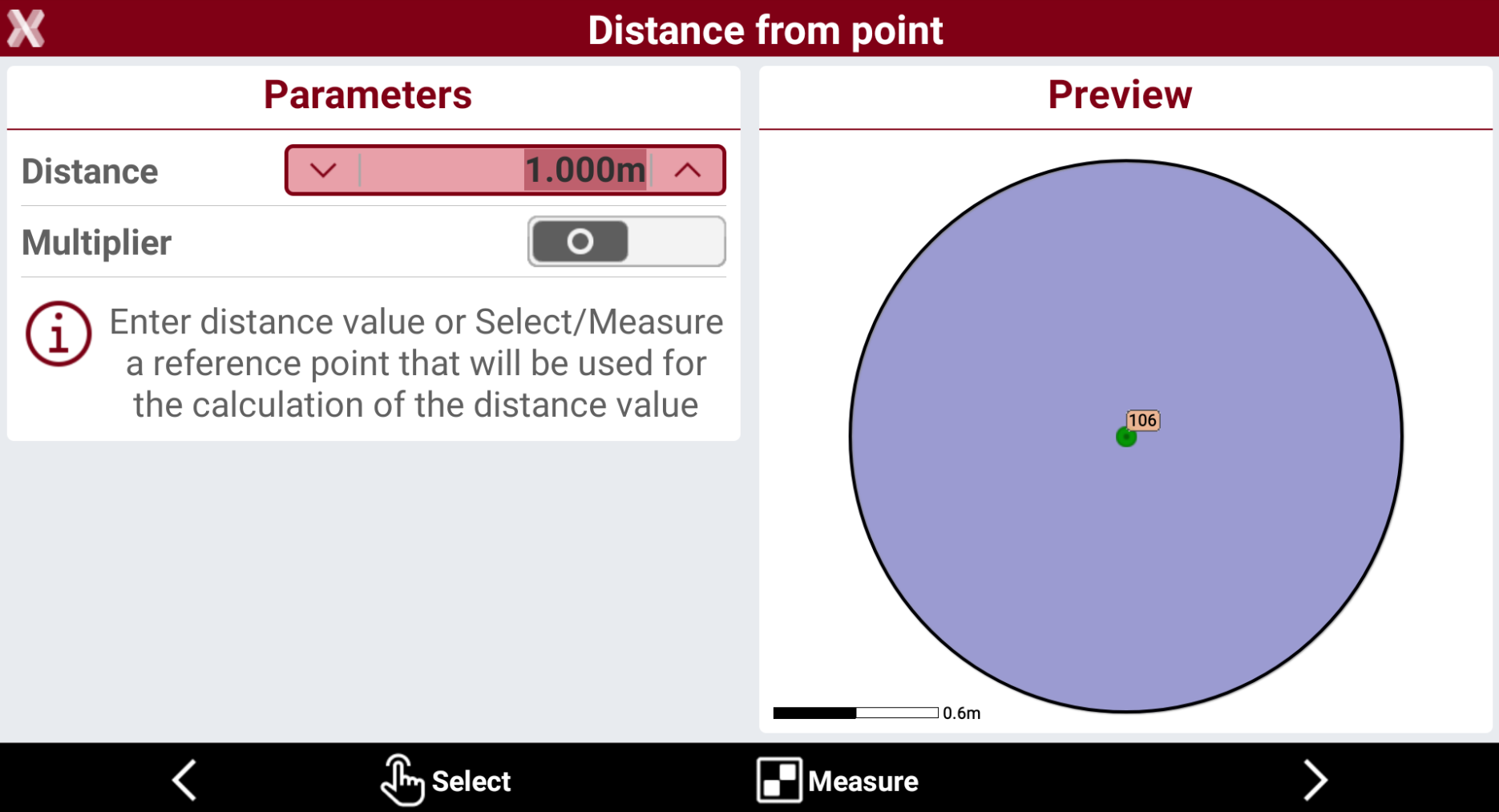

Enter the stakeout information.
-
Distance: the distance to stakeout from the reference point.
-
Multiplier: enables the multiplier. If enabled allows to stakeout from the reference point at the defined distance with a multiplier factor.
-
-
Press Select or Measure to define the distance from the reference point using another point or a measured point.
-
Press Next to stakeout the distance.
-

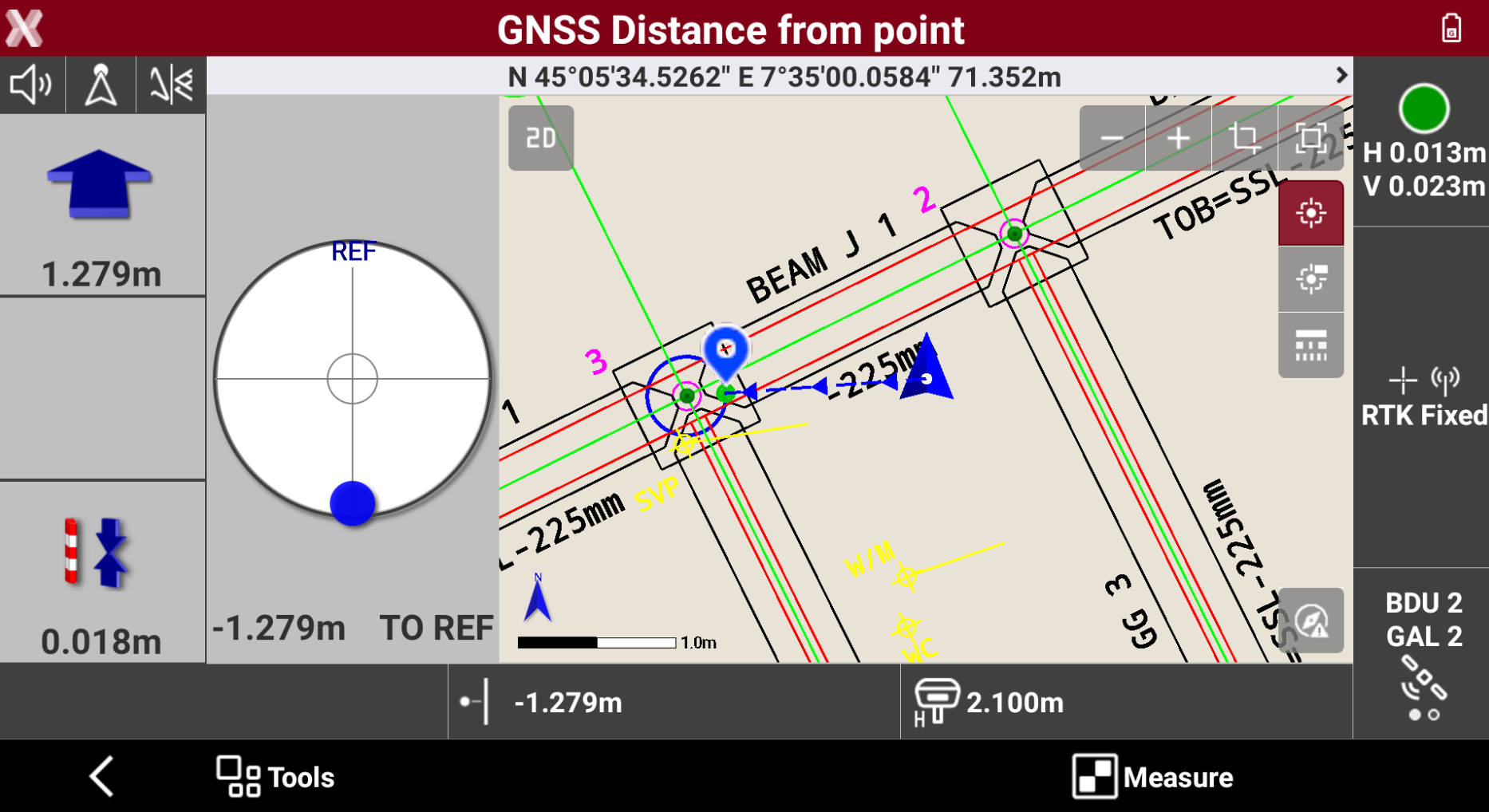

The software shows the information to stakeout the selected distance from the reference point.
-
In case the multiplier was enabled, the software shows also the multiplier factor.
-
Press Measure to measure and store the stakeout reading.
