Create a cable detector profile

locators

• Create one or more profiles related to cable detectors.

• The profile is used to acquire positions with GNSS and depth from cable locator.

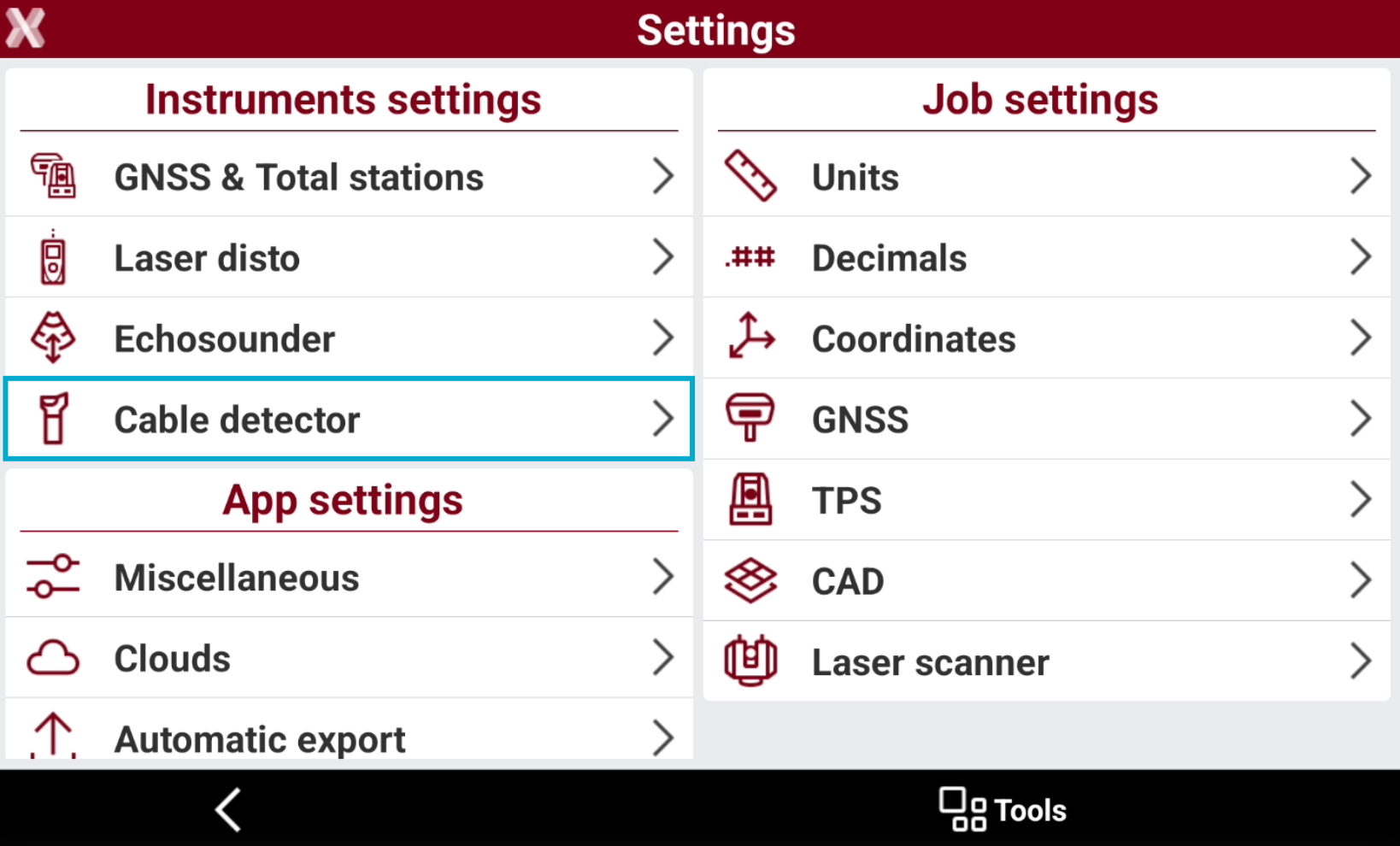

• From Settings page select Cable Detector.

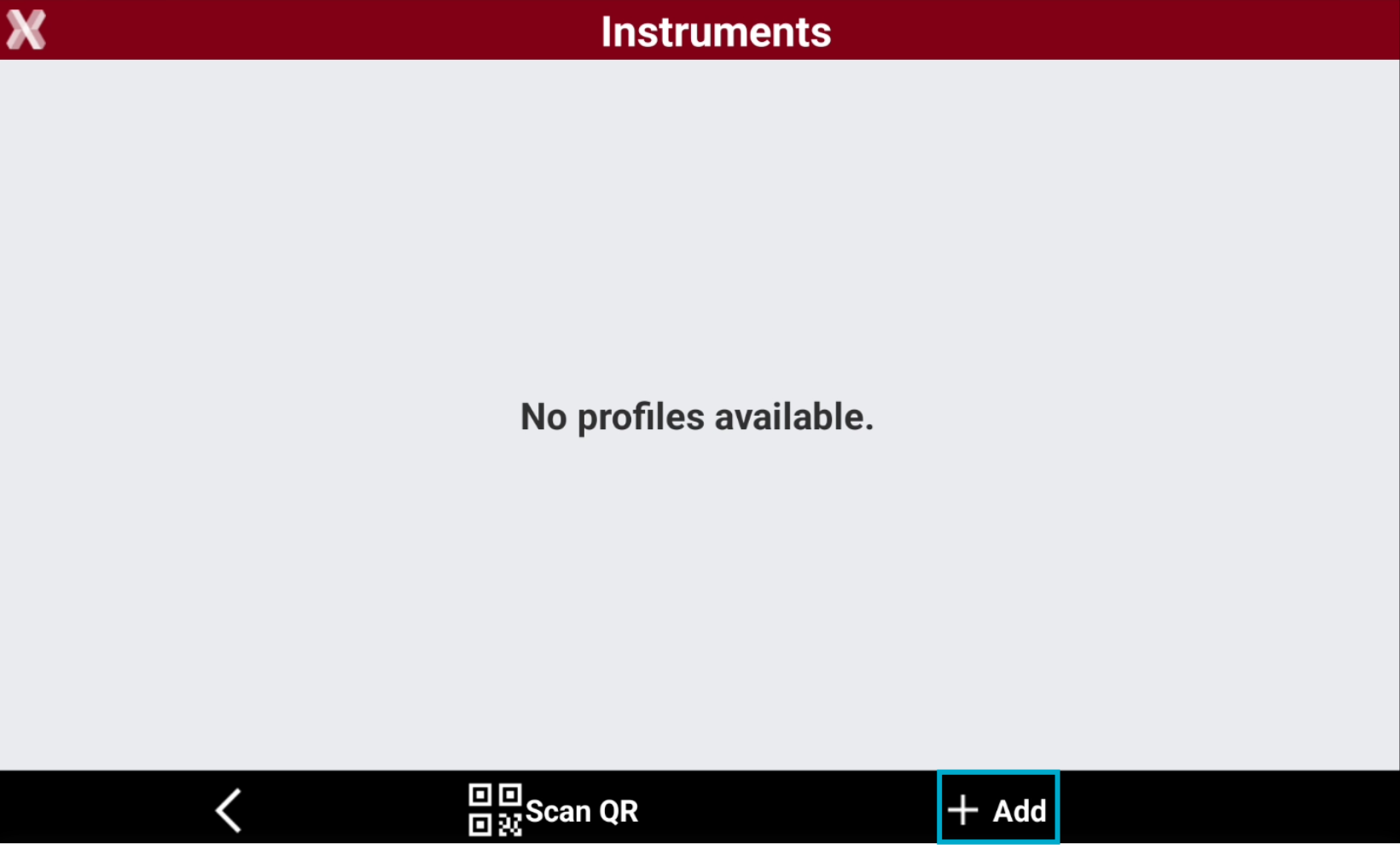

• Select Add to create a new profile.

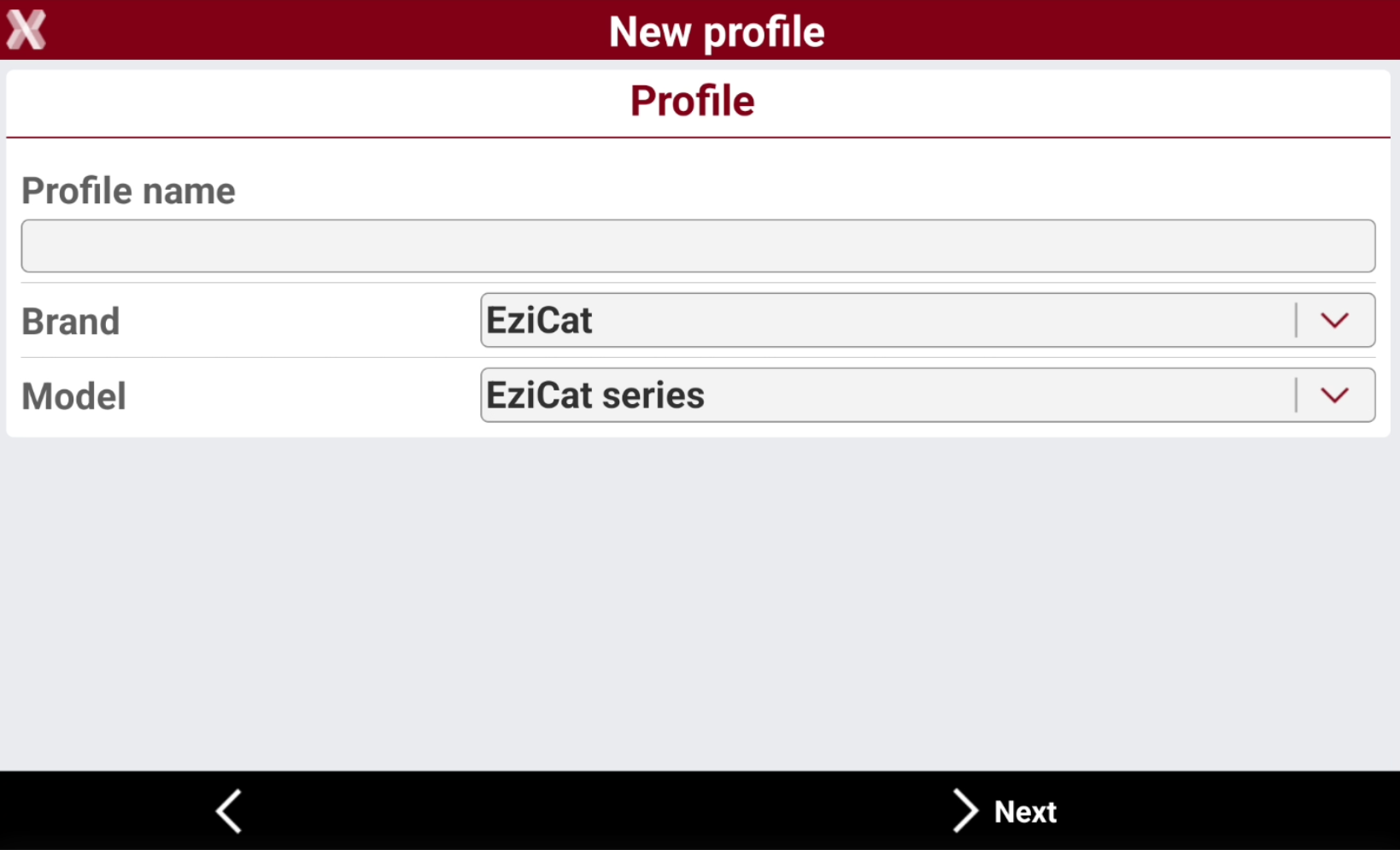

Profile page

• The Profile page allows to enter the information on the profile type and instrument connected.



  • Profile name: name to assign to the profile.

  • Brand: brand of the cable detector.

  • Model: model of the cable detector.

Device page

• The Device page allows to define how the device is connected to the software and search the device using the bluetooth.

  • Device: name of the Bluetooth to connect.

• To start a search in case the instrument is not in the list, select Add device.
