Road design stakeout

road

• The function Where am I? provides information about the current position in relation to the selected road project (road design).

• The function allows to stakeout the road design data without the need to specify a station and an offset.

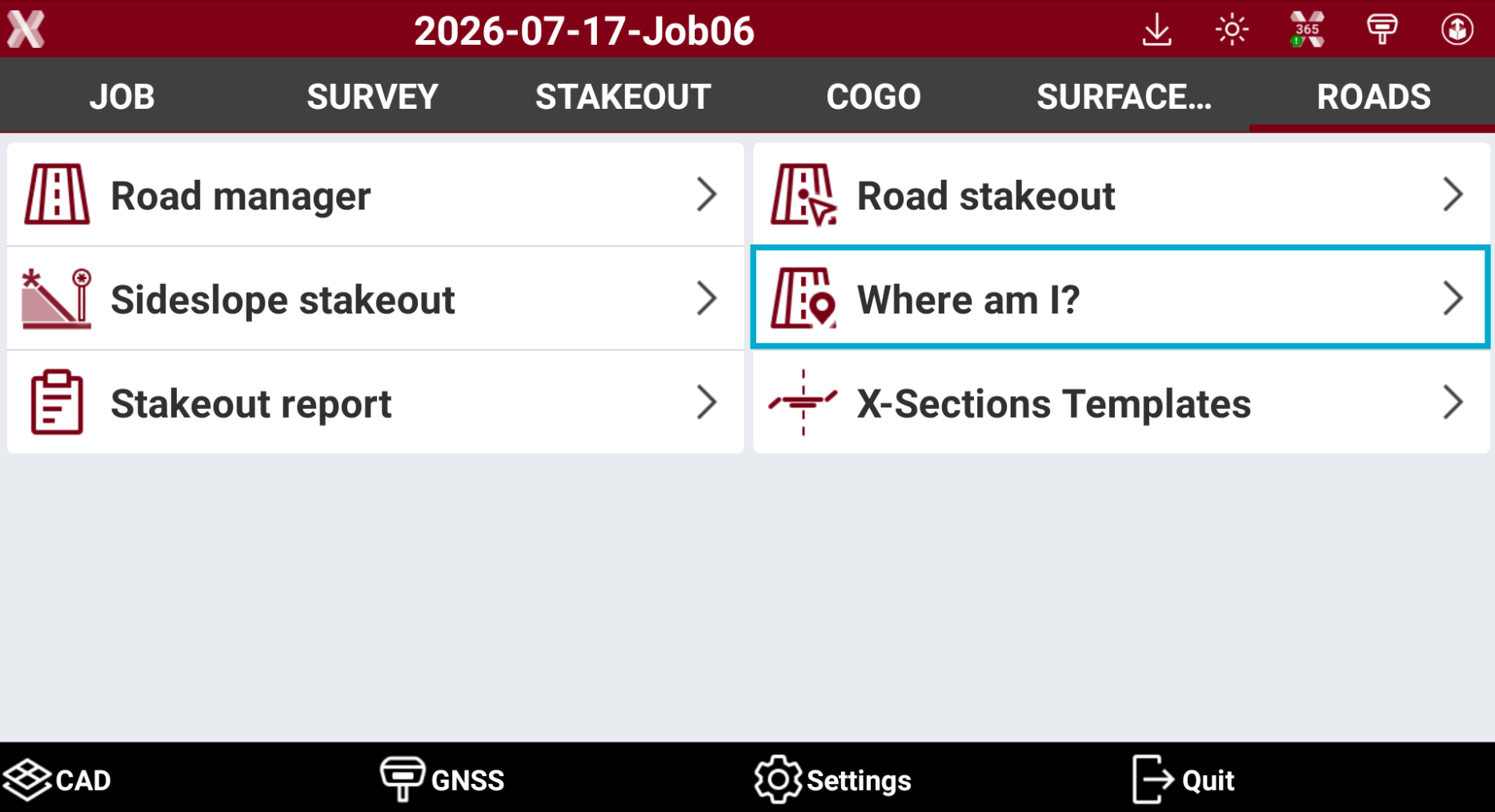

• From the Roads page select Where am I?.



• Select the road to stakeout.

• The software shows the current target position in relation to the road design.



• Based on the position, the following information are displayed.

  • Graphically visualization of the current position as plan view, profile view and cross section view.

  • Chainage of the current position.

  • Distance from the reference axis or a selected axis.

  • Element of the horizontal alignment.

  • Element of the vertical alignment.

  • Absolute elevation, axis elevation, elevation difference from the design.

  • Right or left side of the track.

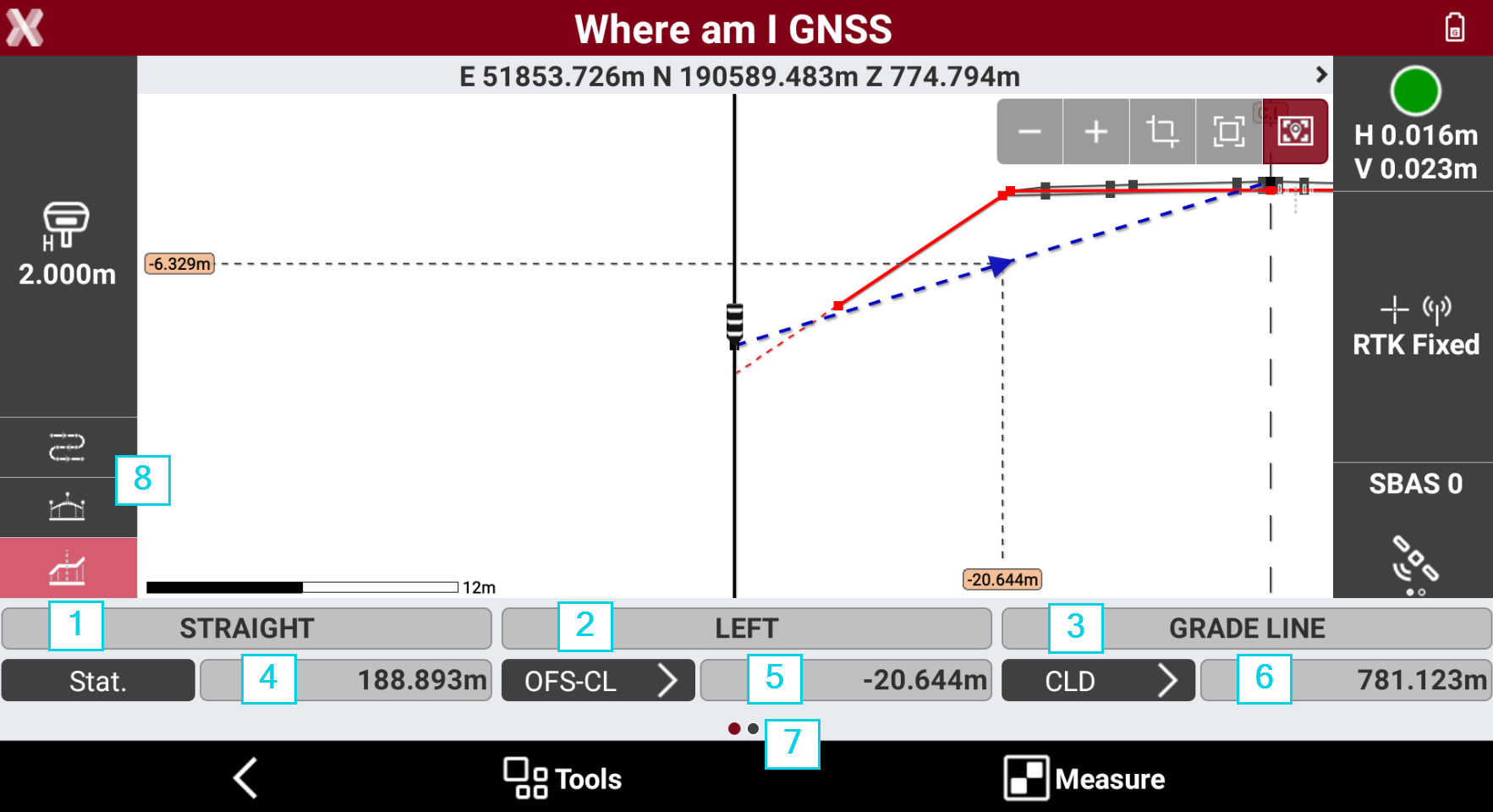

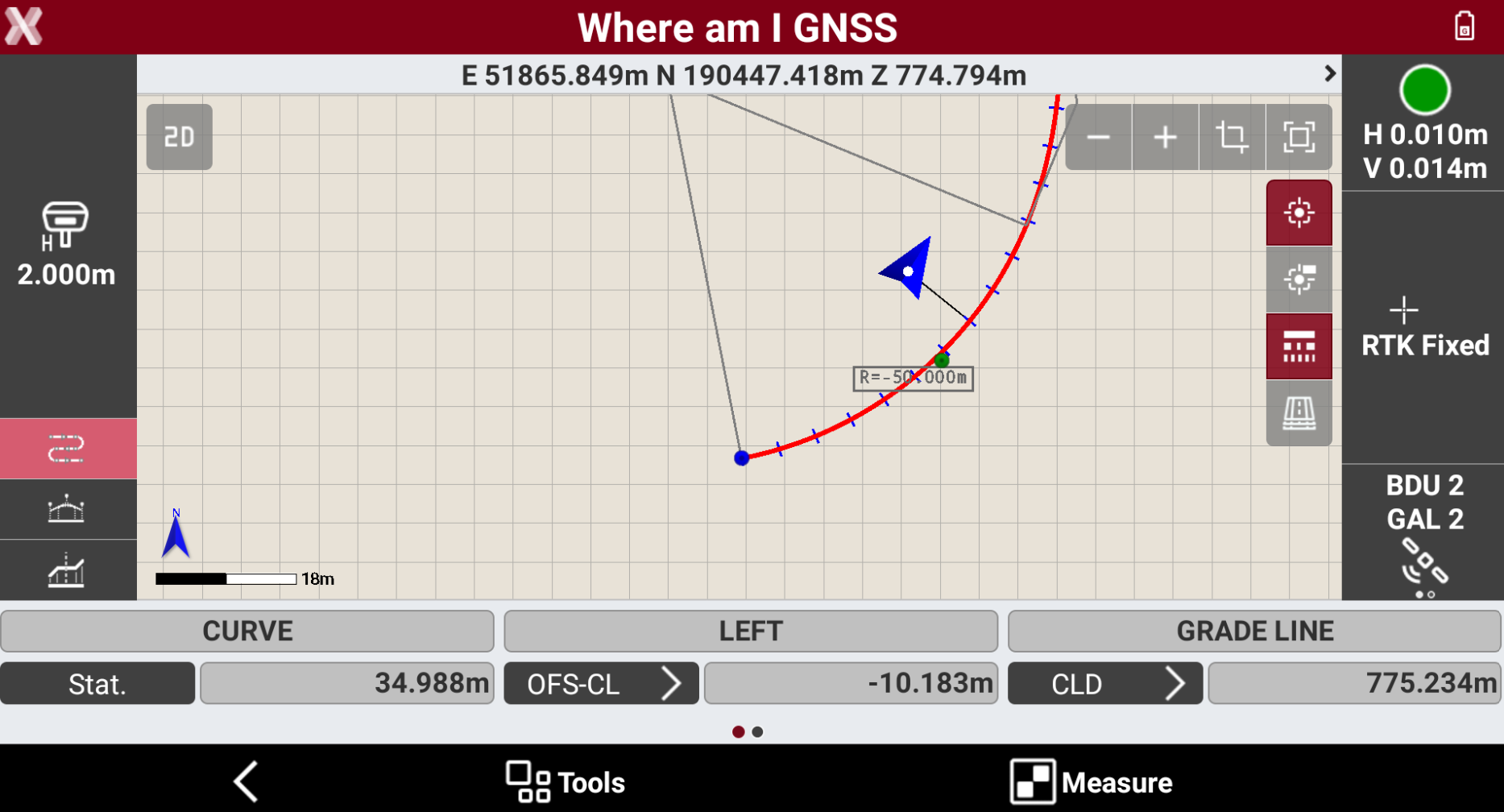

Where am I? toolbar

• The bar shows different information related to the road design.



  • 1: the element of the horizontal alignment at the current position.

  • 2: shows if the current position is on the left or right side of the road.

  • 3: the element of the vertical alignment at the current position.

  • 4: current station.

  • 5: horizontal offset from the reference element. Clicking the button it is possible to change the Offset mode.

  • 6: difference elevation. Clicking the button it is possible to change the Elevation mode.

  • 7: scroll the toolbar on the right to open the tools page.

  • 8: change the view mode.

Change the view mode

• On the left bar it is possible to change the view mode.

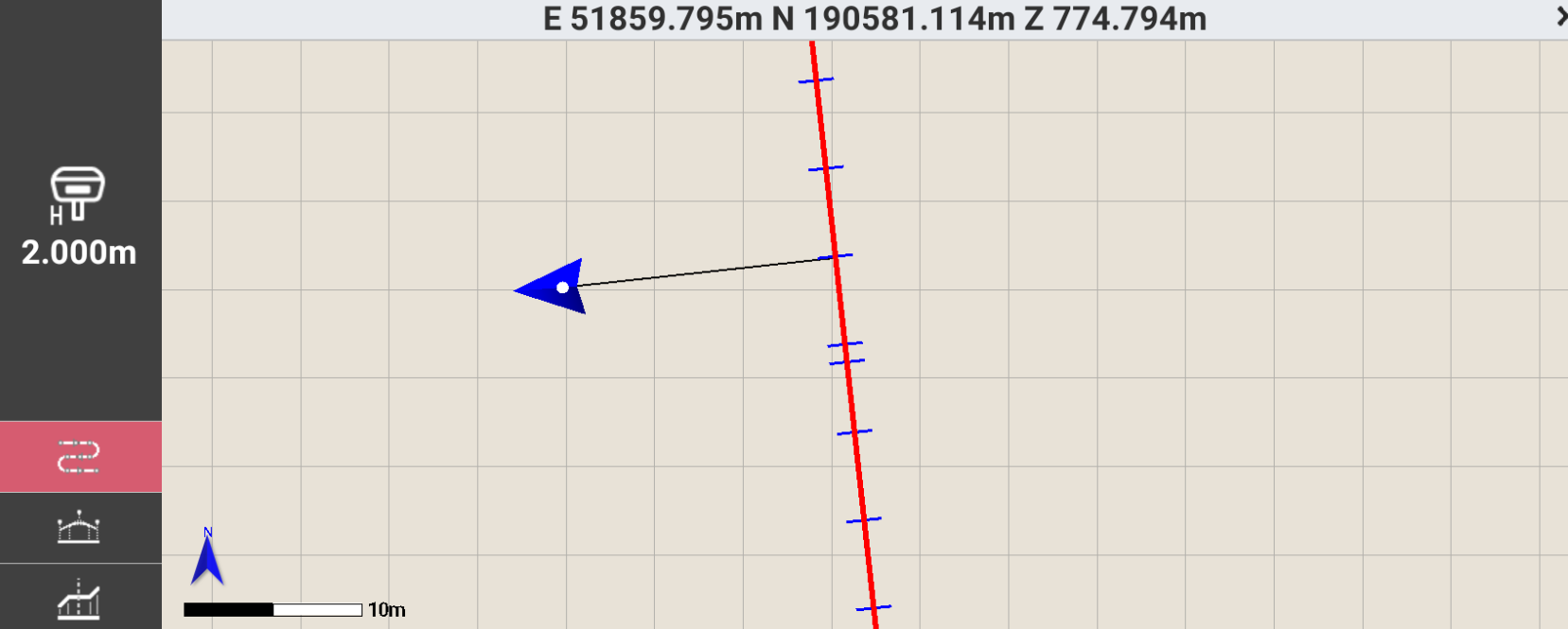

  • : shows the current position over the horizontal alignment.

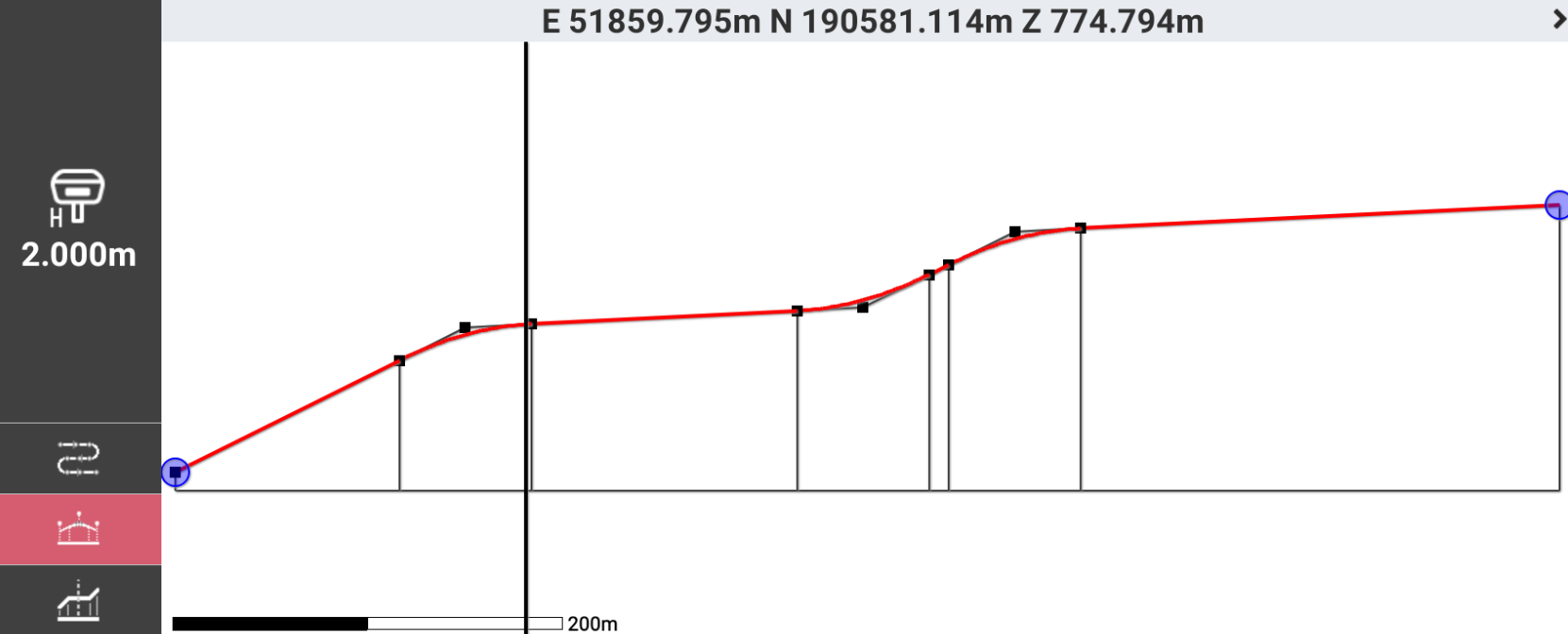

  • : shows the current position (identified by the vertical black line) over the vertical alignment.

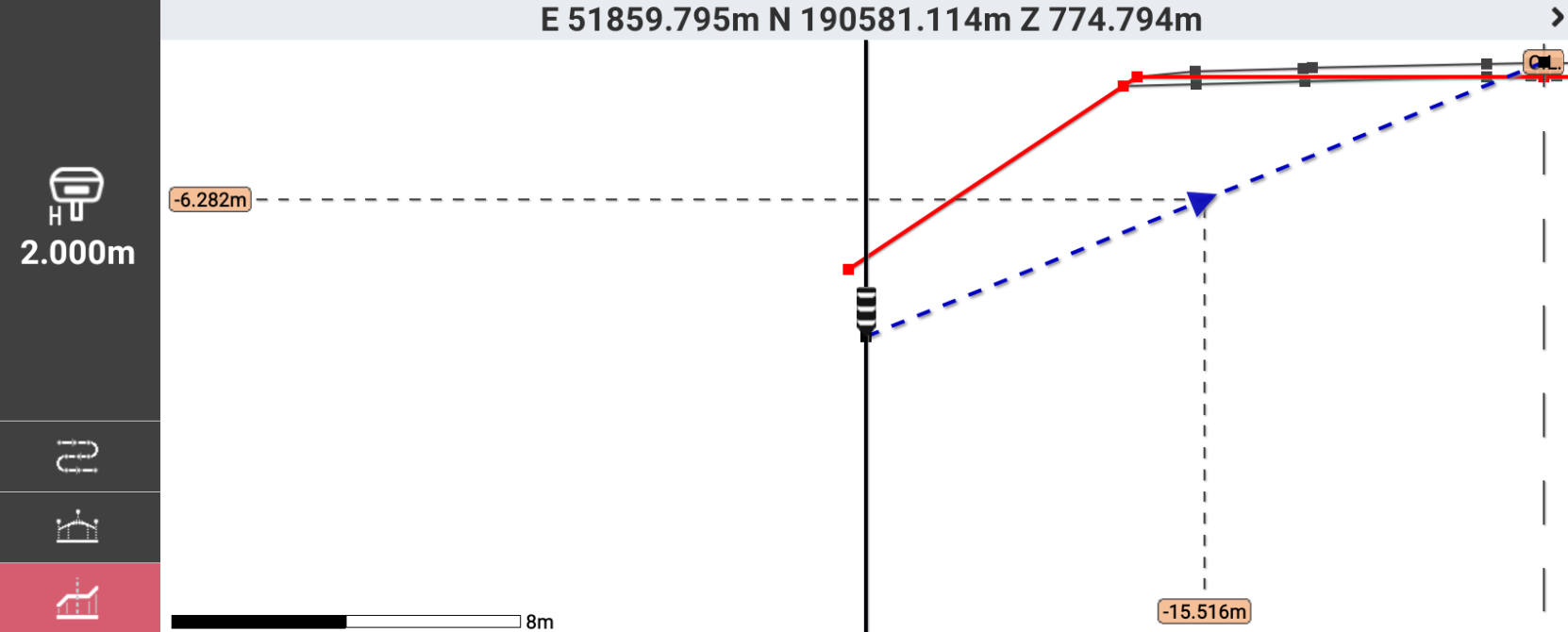

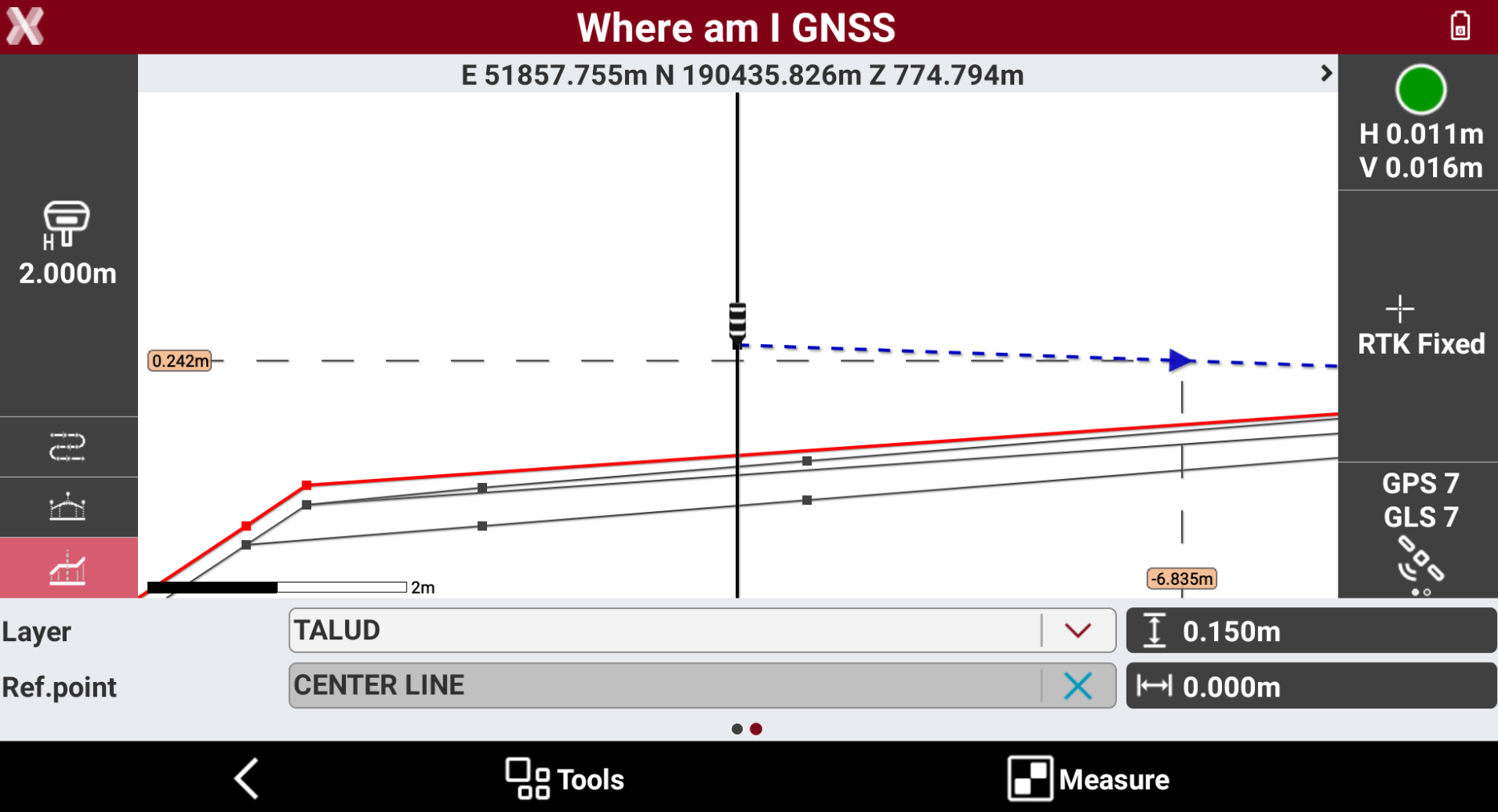

  • : shows the current position over the cross section at the current station.



Offset value and offset mode

• The function allows to stakeout the horizontal offset from the centerline or from a reference axis.

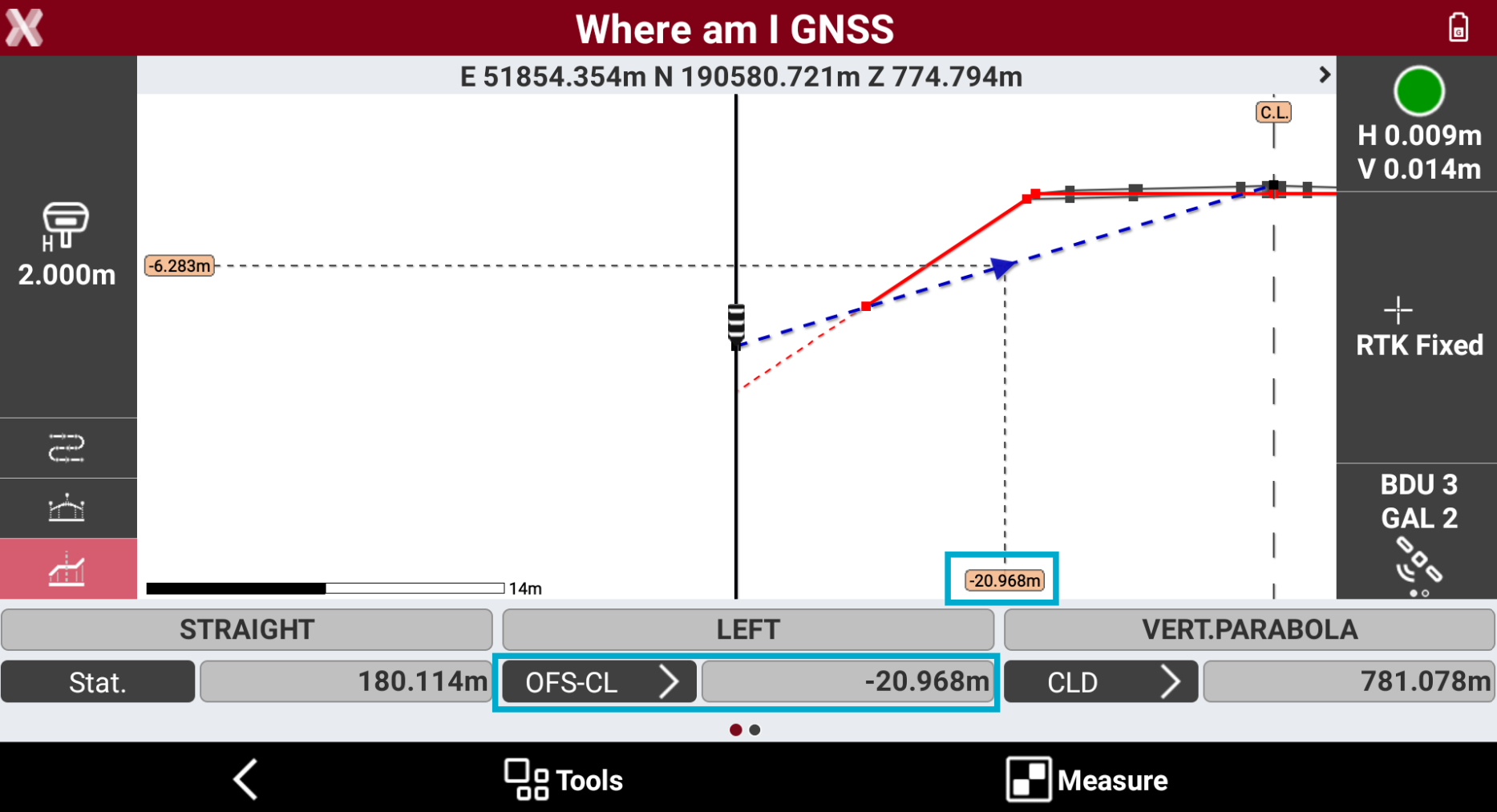

• The information regarding the offset is available in the toolbar and on the graphic view when in cross section view.

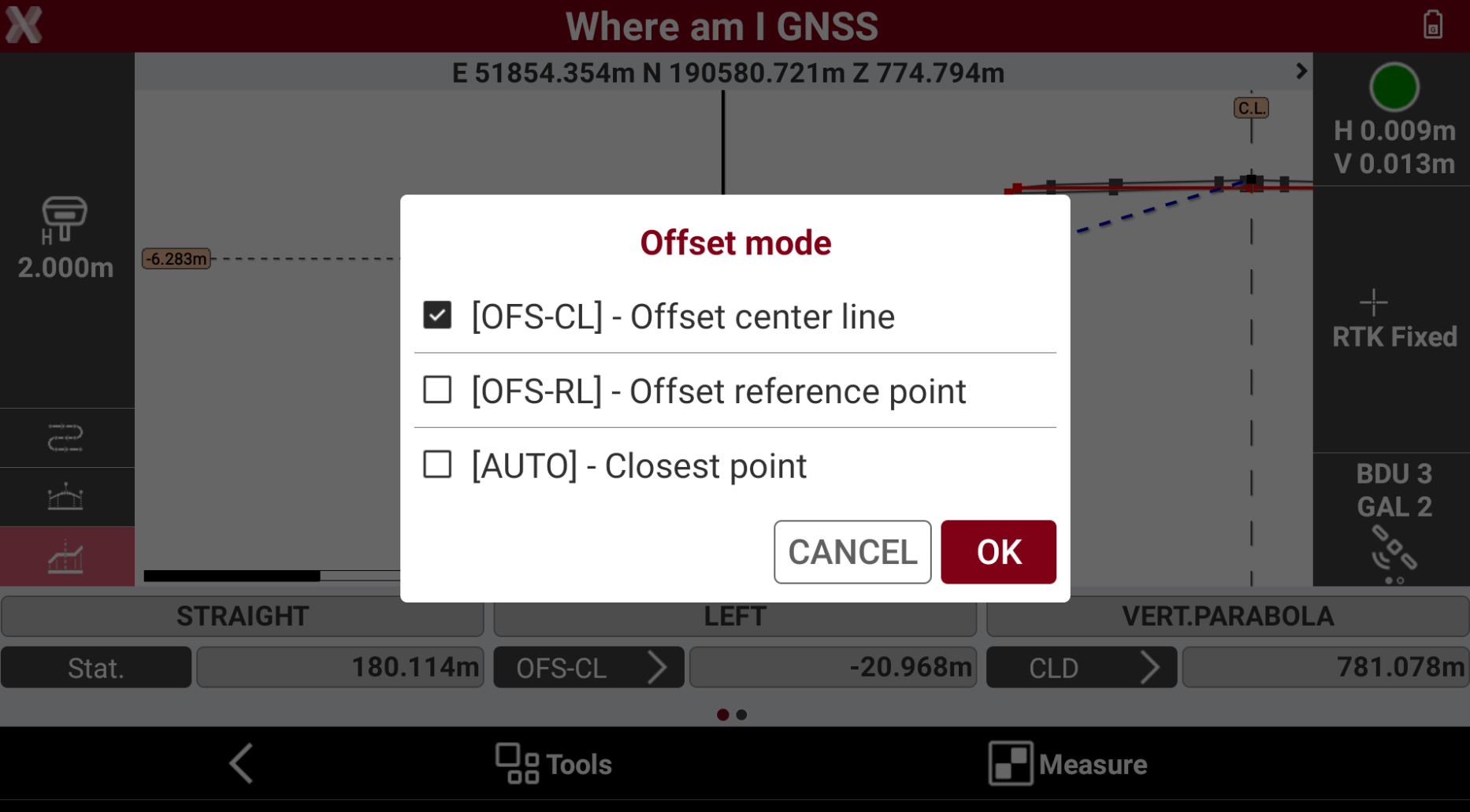

• Pressing on the offset button in the toolbar it is possible to change the Offset mode.



  • OFS-CL: the offset value is referred to the center line.

  • OFS-RL: the offset value is referred to the selected reference point. A reference point has to be selected.

  • AUTO: the software shows the offset automatically referring to the closest axis.

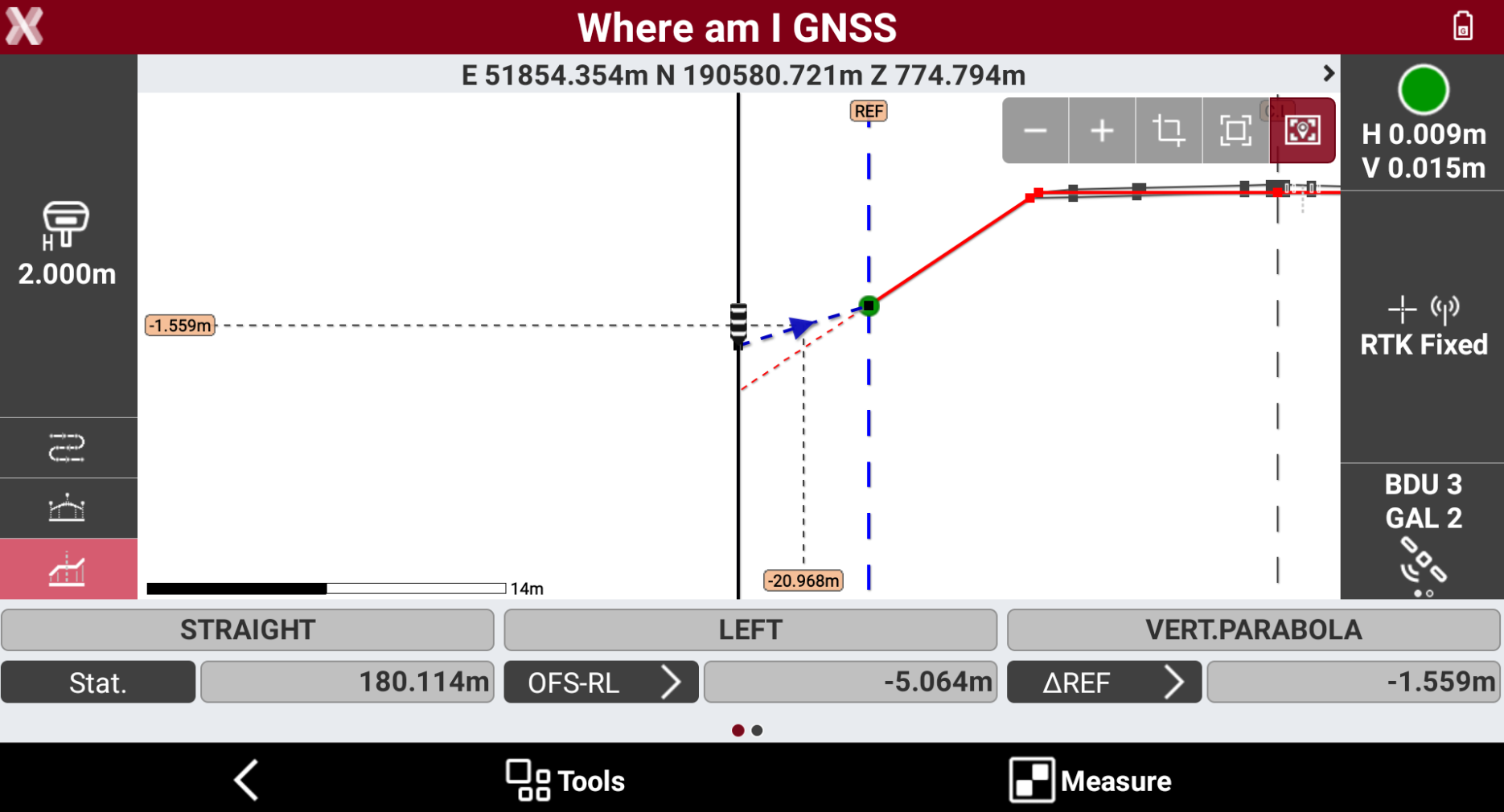

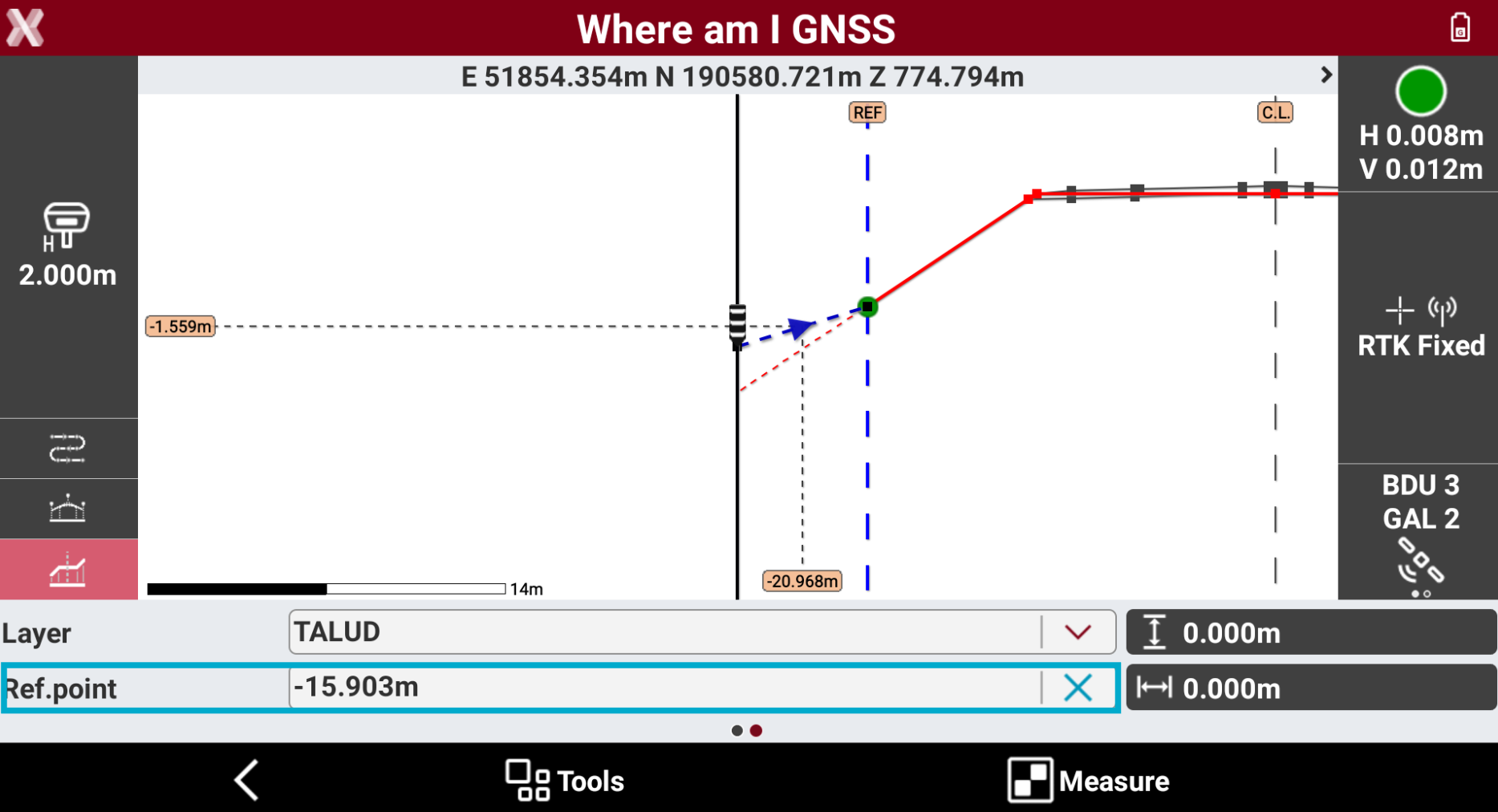

• It is possible to select or change the reference point, for example when it is required to stakeout a different axis, clicking in the cross section view at a different vertex to change axis.



• The offset is now to the selected reference point.

• The selected reference point is visualized graphically with the label REF and the offset of the reference point is visible scrolling the toolbar on the right, as Ref.point.



• Tap on X to remove the current reference point or click to a different reference point in the cross section view to select a different one.

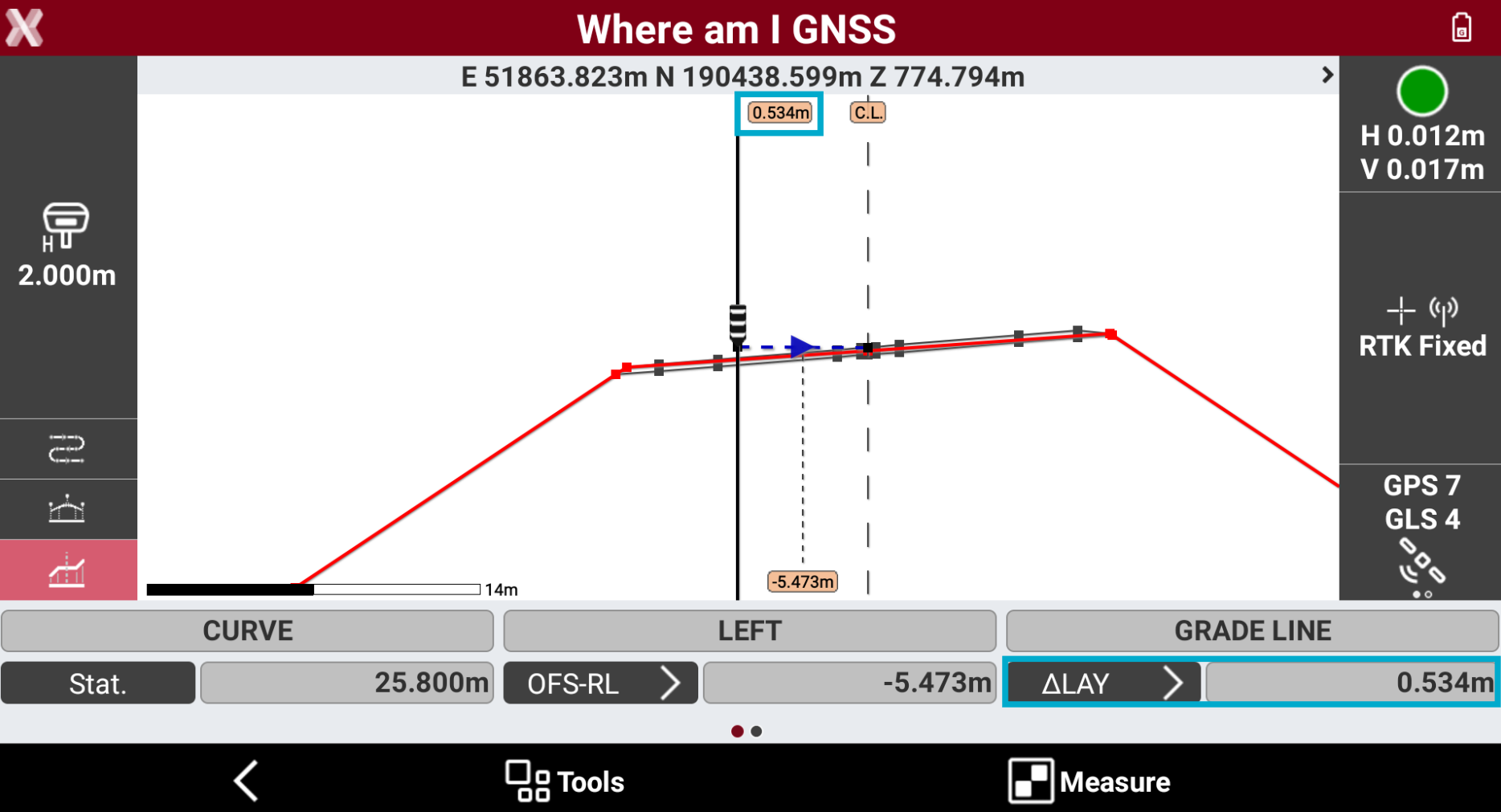

Elevation difference and elevation mode

• The function allows to stakeout the cross section and show the difference elevation to the design, to a reference point or to the centerline.

• The information regarding the different elevation is available in the toolbar and on the graphic view when in cross section view.

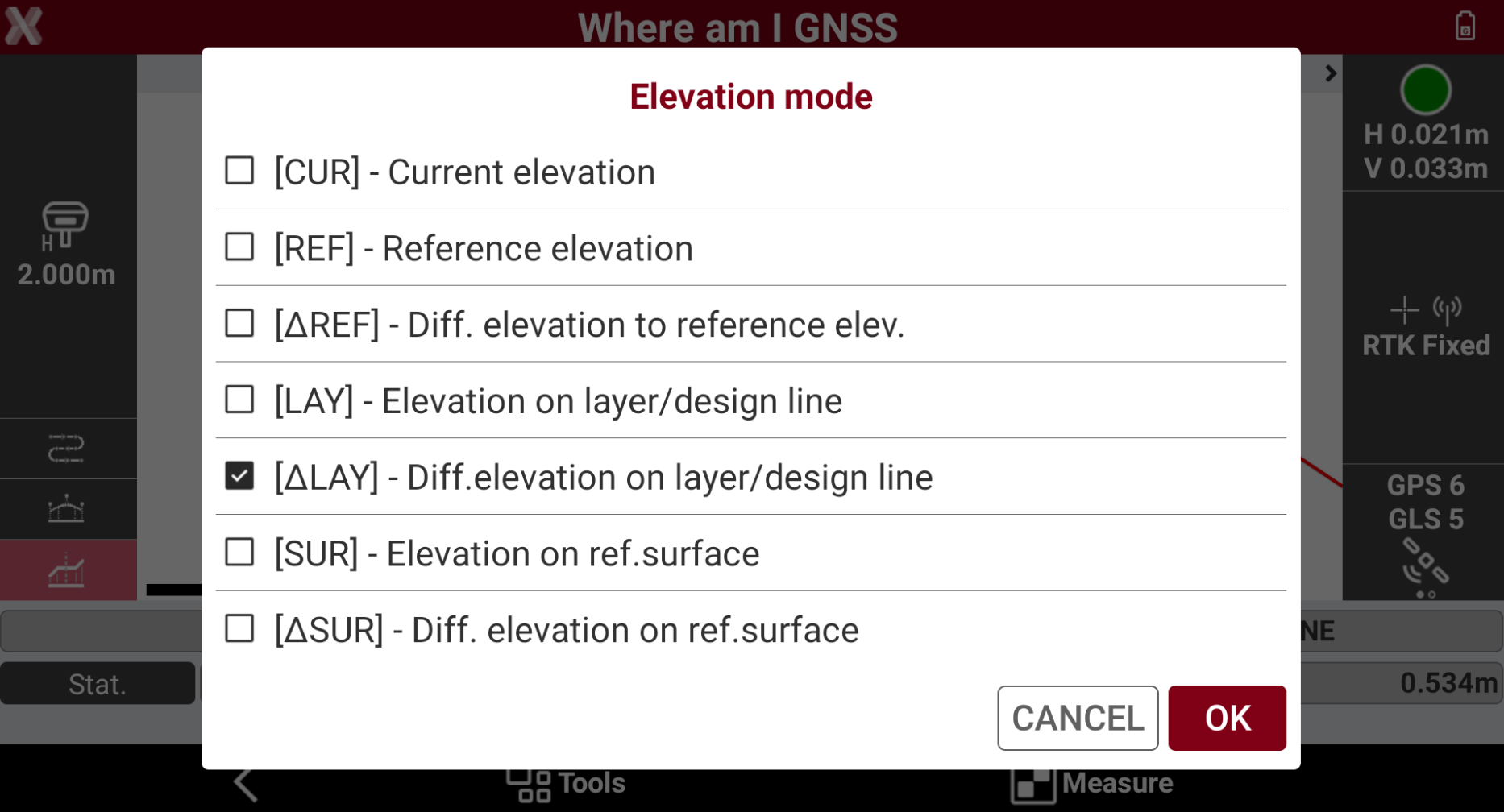

• The field shows the different elevation related to different road design elements. Click on the button to change the Elevation mode.



  • CUR: the current instrument elevation.

  • CLD: the elevation of the center line at the current station.

  • ∆CLD: the different elevation from the current position to the center line at the current station.

  • LAY: the elevation of the cross section at the current position.

  • ∆LAY: the different elevation from the current position to the design cross section.

  • SUR: the elevation of the reference surface at the current position. Requires a reference surface to be loaded in Tools.

  • ∆SUR: the different elevation from the current position to the reference surface. Requires a reference surface to be loaded in Tools.

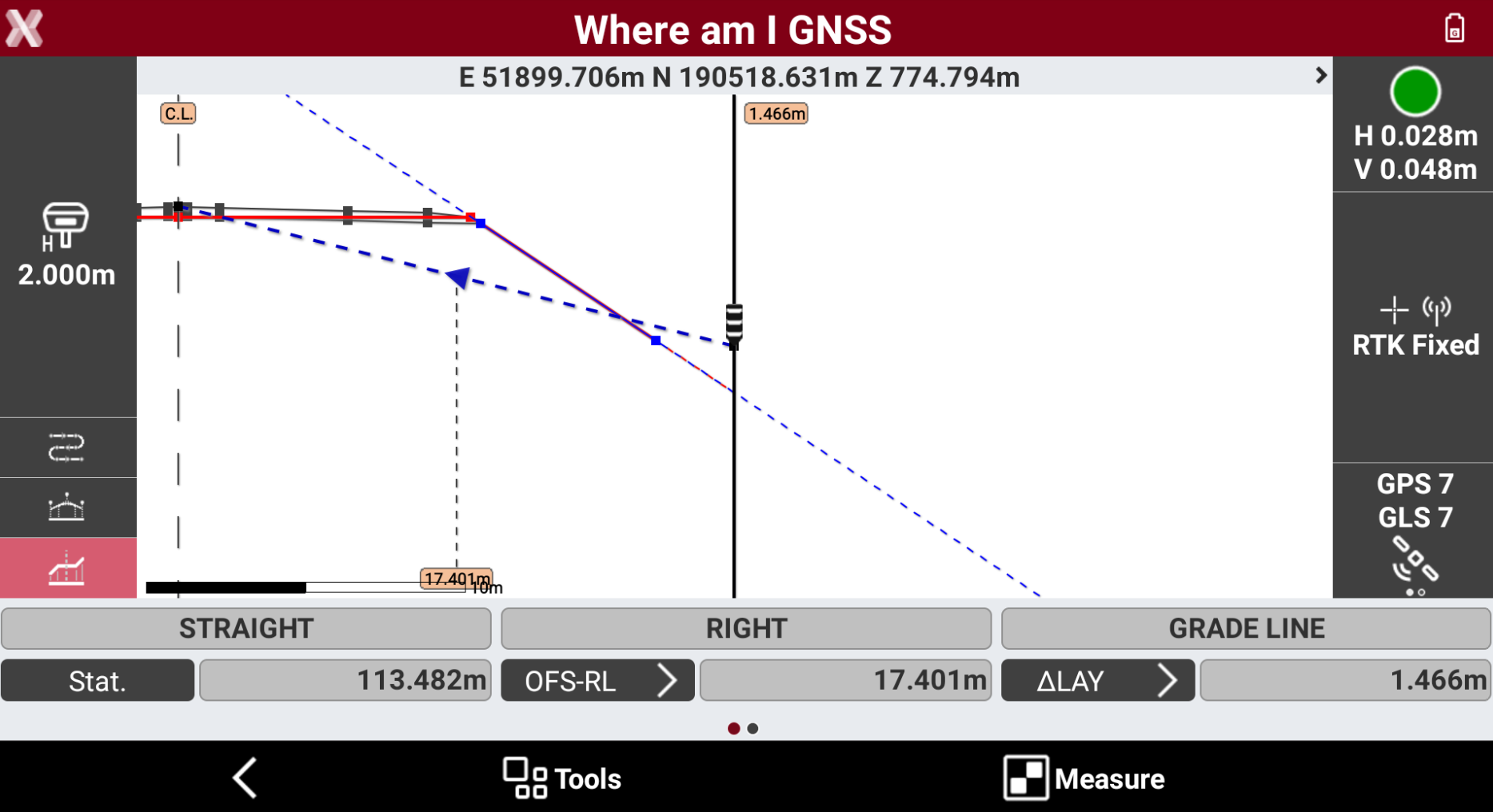

• It is possible to select a cross section segment to stakeout clicking in the cross section view on a specific segment.



• The segment is visible in the graphic view with a blue dotted line.

• The elevation difference is automatically changed to ∆LAY to display the different elevation to the cross section segment. When outside the segment, the software shows the difference elevation to the extension of the segment.

• Below video shows how to change the Elevation mode and select a specific segment to stakeout.

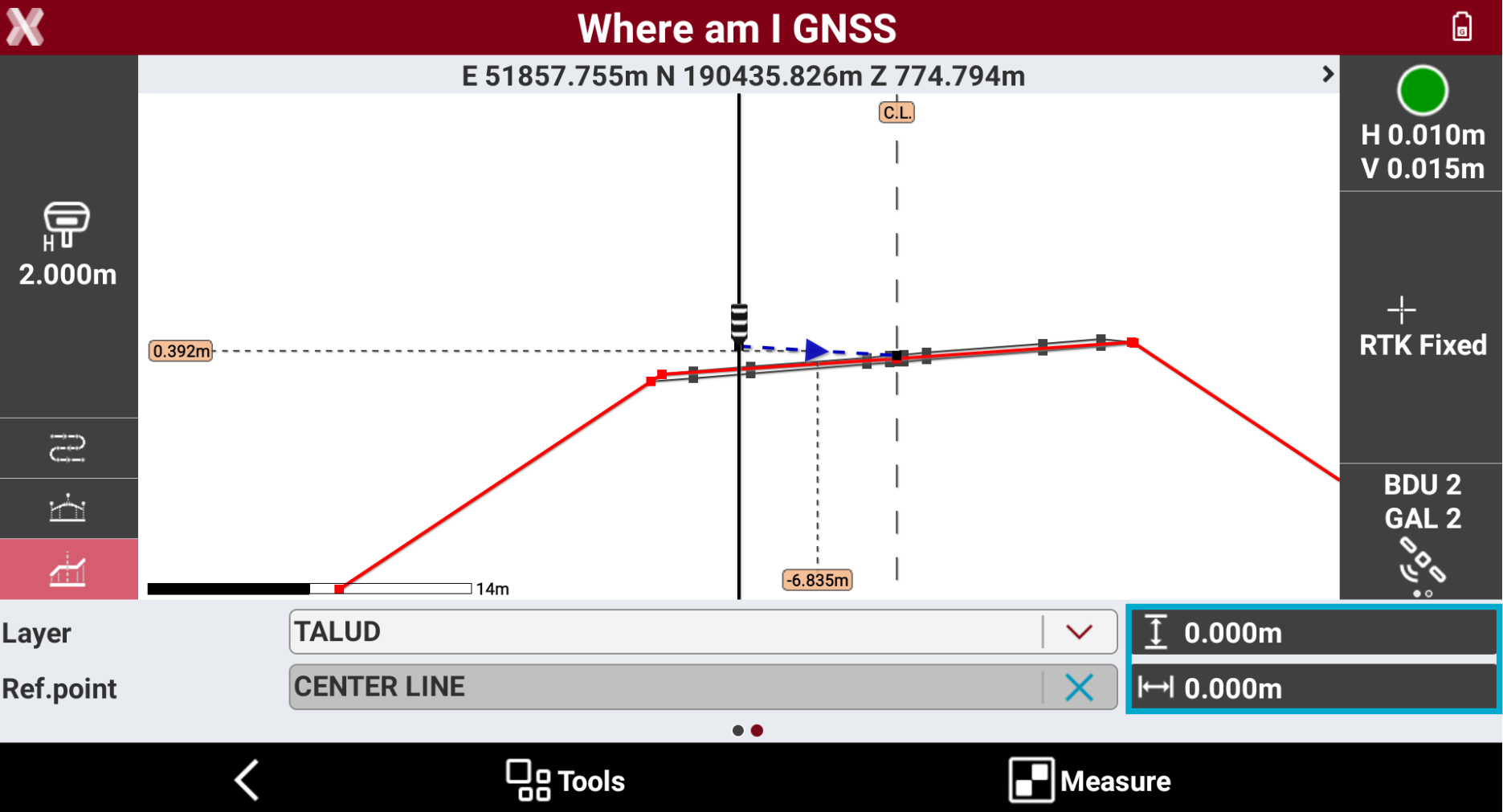

Apply an offset

• In the application it is possible to apply an horizontal or a vertical offset to the cross section.

• To apply an offset scroll the toolbar to the right.



• Select to enter a vertical offset to the cross section.



• Select to apply an horizontal offset to a selected reference point. This option is only available if a reference point is selected.

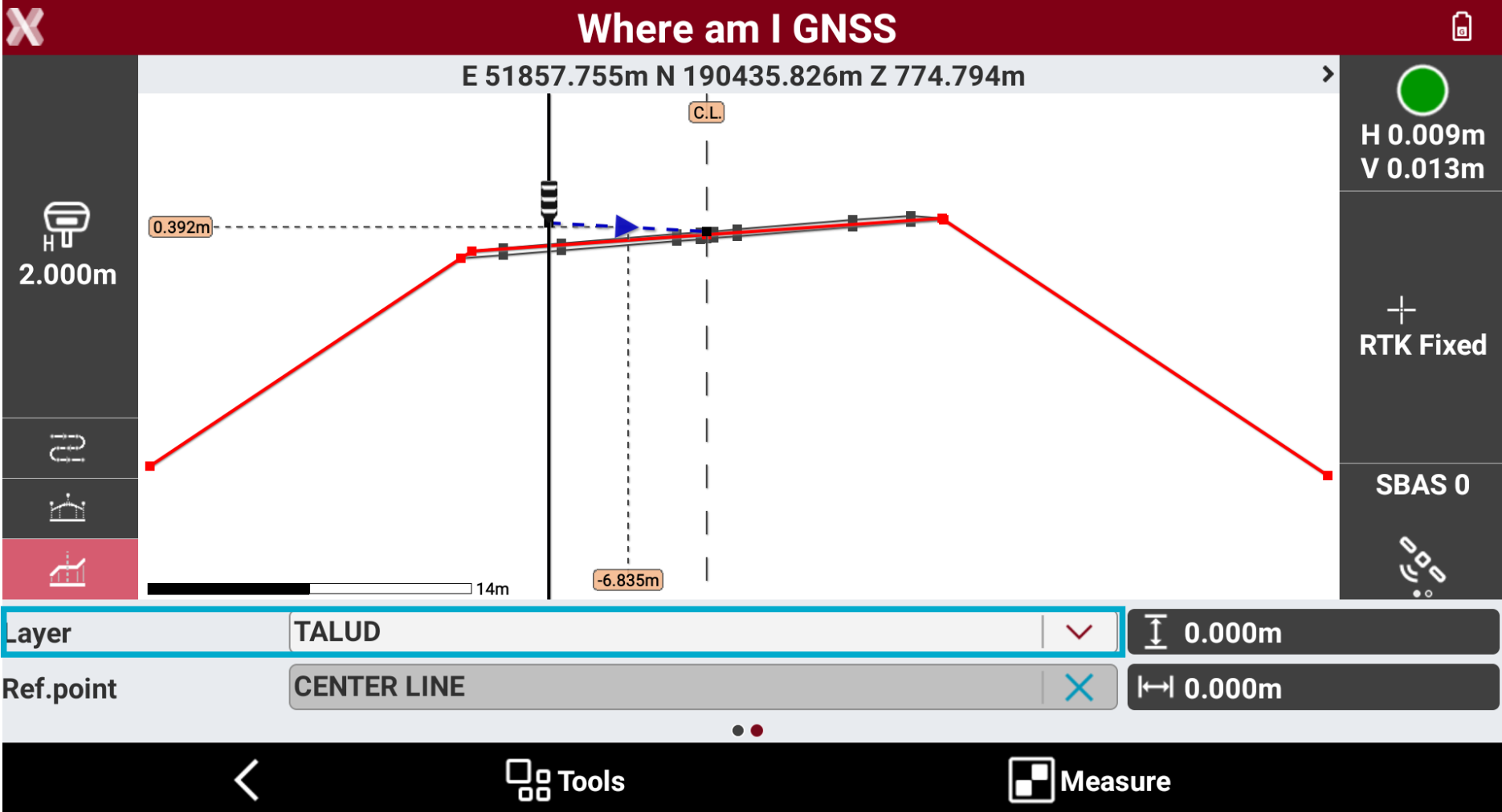

Change road design layer

• Some data is available with multiple layers.

• To select a different layer scroll the toolbar to the right and click Layer.



• Select a different layer to stakeout.

Stakeout elevations on a reference surface

• It is possible to stakeout elevations using a reference surface. The elevation will be calculated not on the road design but on the reference surface.

• If a reference surface is used it is possible to change the Elevation mode to SUR and ∆SUR.

• To load a surface click Tools and select Reference surface.

• Select a surface from the list of available surfaces.

Measure a point

• It is possible to record the position with the offset and elevation information.

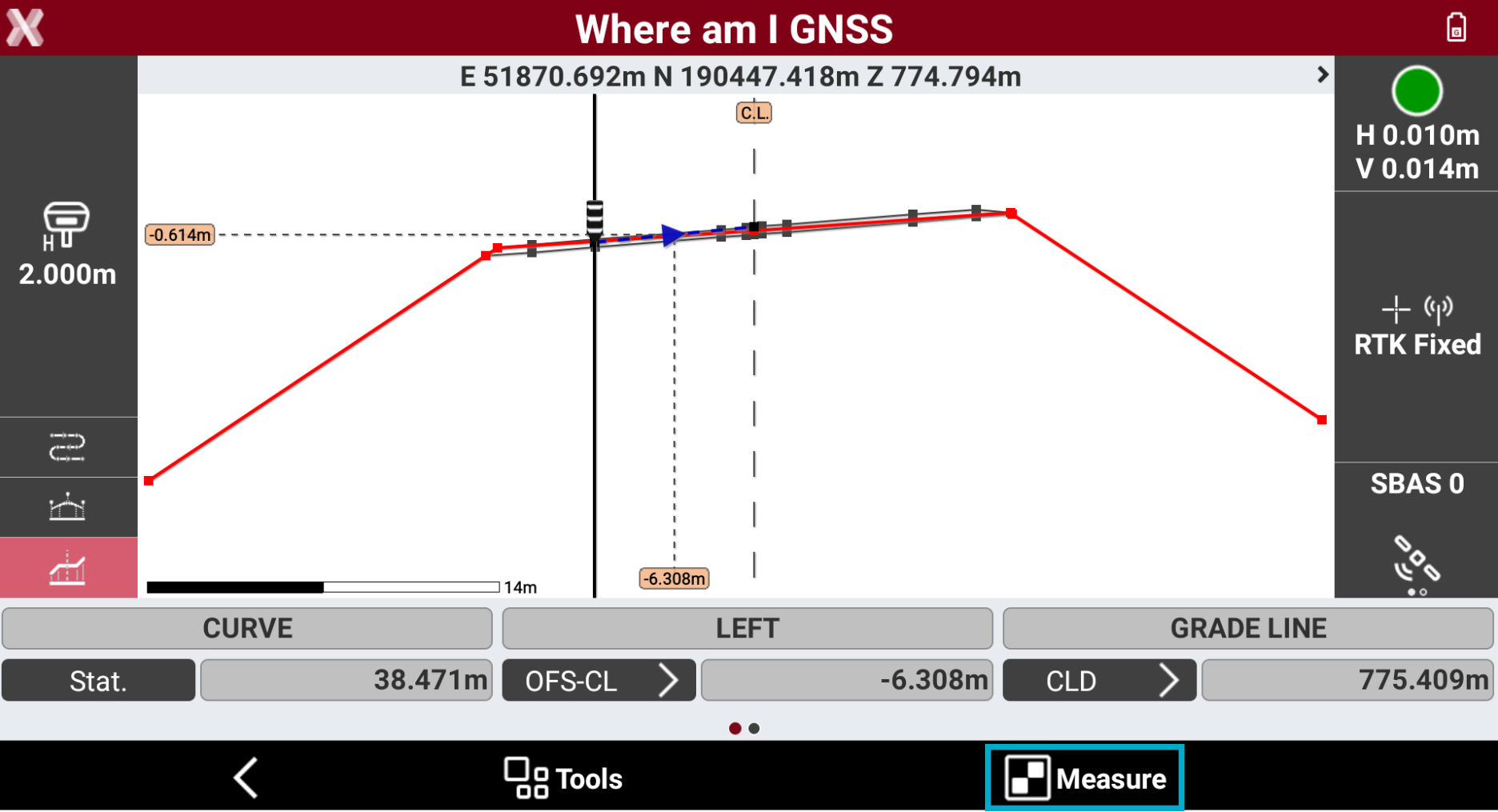

• To measure the current position with stakeout information click Measure.

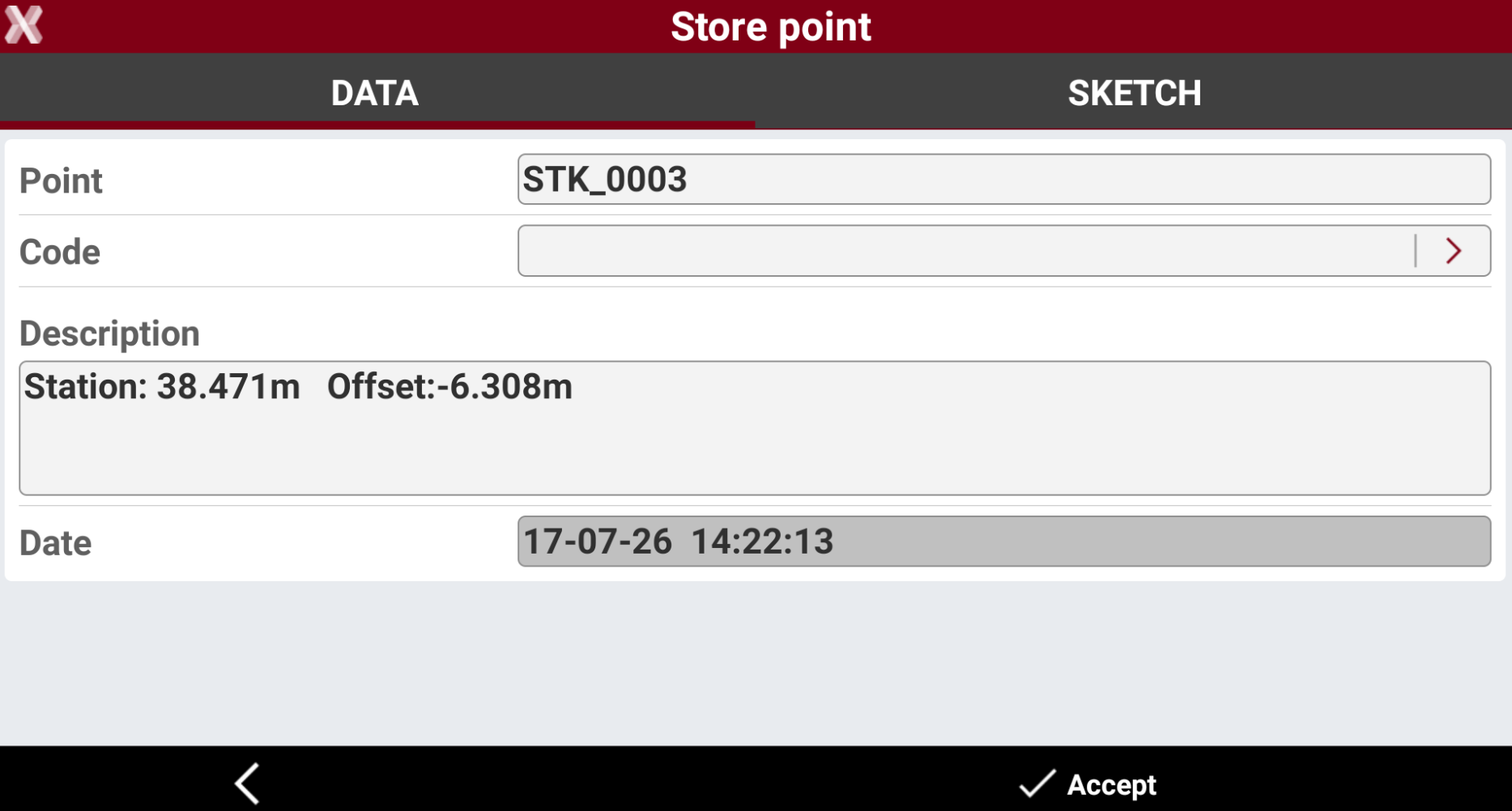

• The software records the position, entering the stakeout information in the description.



• Press Accept to save the point.

• The recorded point is available to be exported in the stakeout report.
