Distance & offset

robotic

  • Distance & offset is used to determine new positions and distances related to a starting point on vertical surfaces.

  • Having a starting point, set a horizontal relative distance and a vertical relative distance.

  • The laser pointer positions itself exactly on the requested point.


  • Open the MEP page.

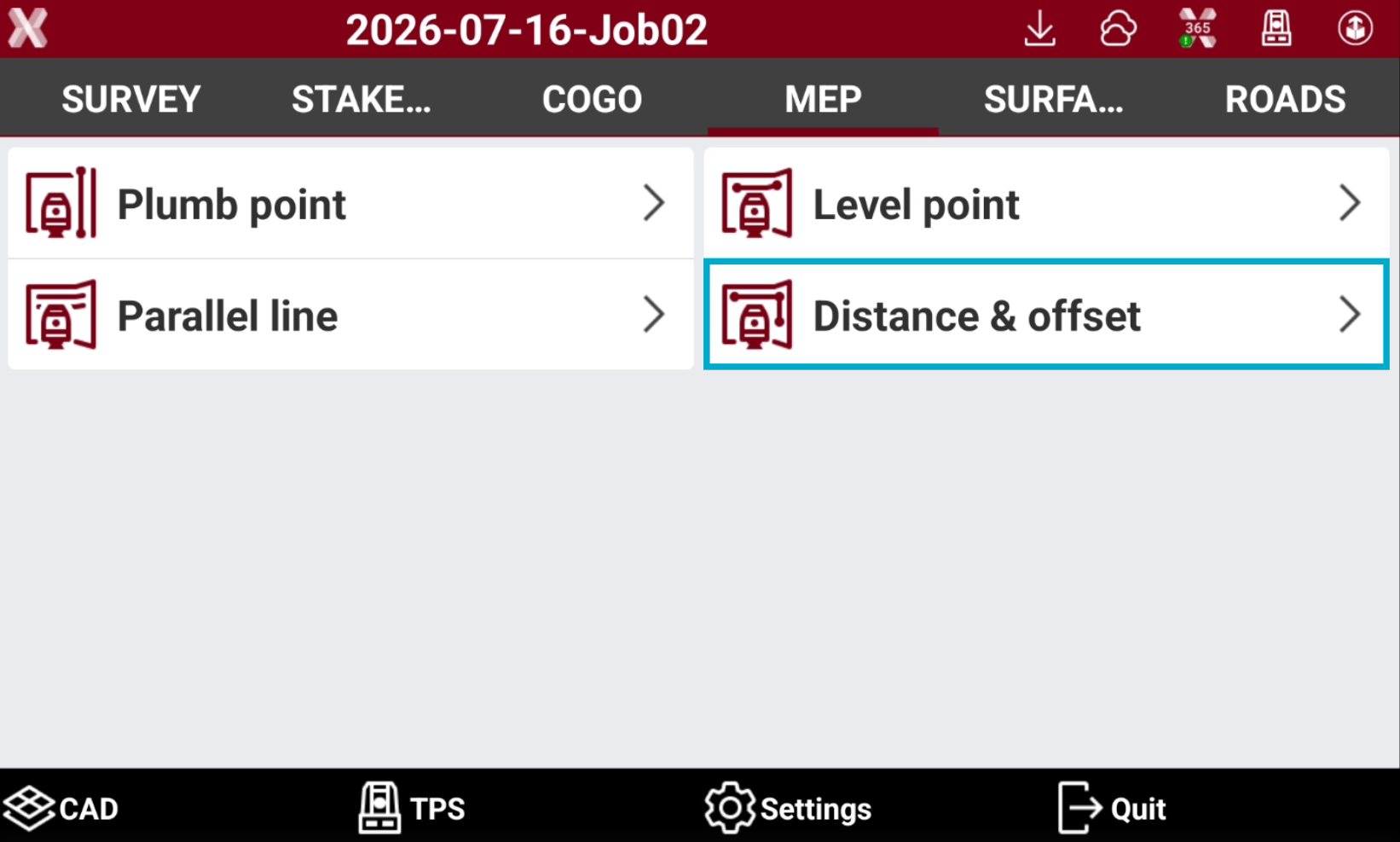

  • Select Distance & offset.


  • Measure the reference point on a vertical surface. Press Measure.

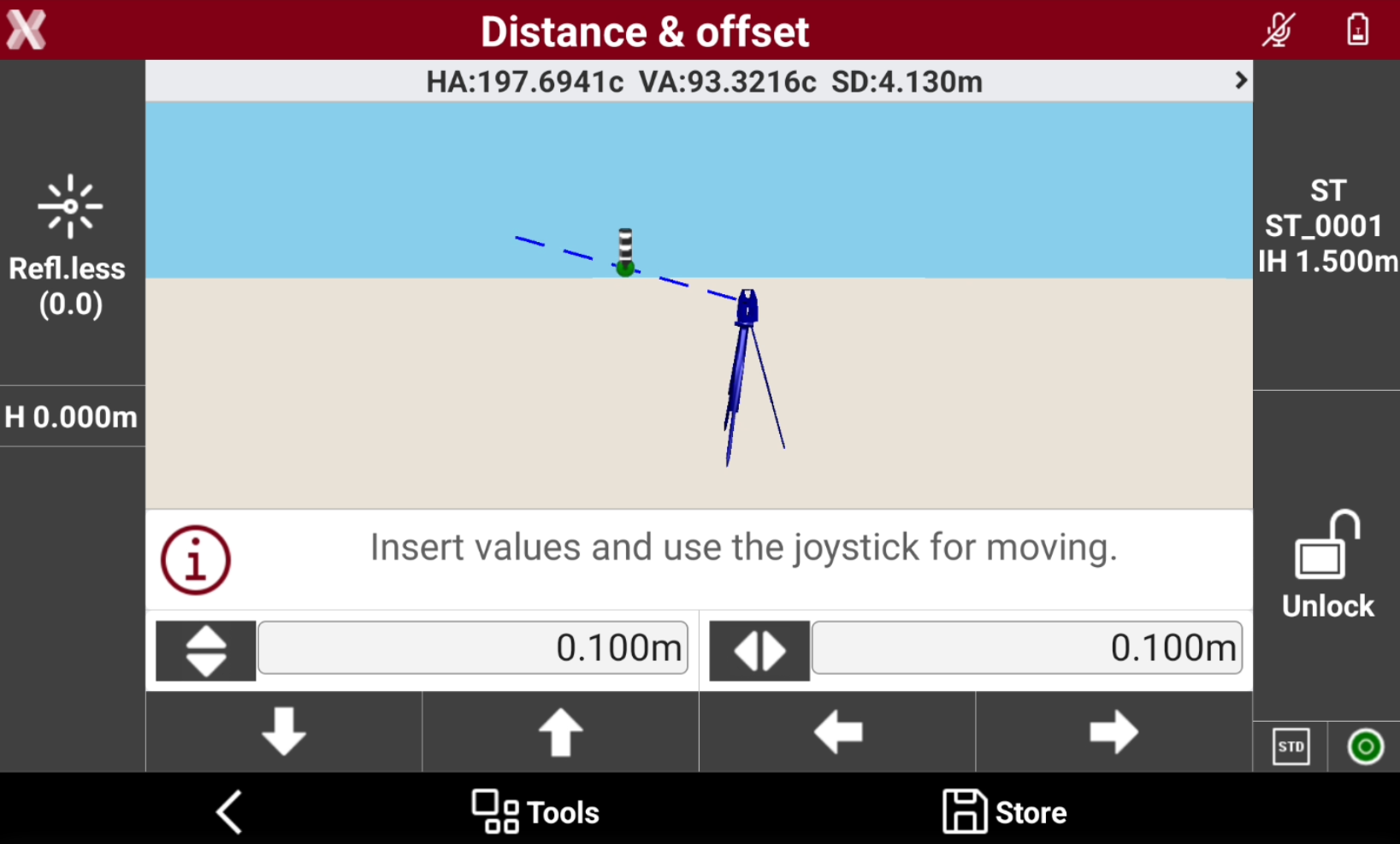

  • Enter the vertical offset image-20260716-132409.png and horizontal offsets image-20260716-132423.png .

  • Use the arrows for moving the robotic total station laser pointer on the vertical surface of the entered offset values.


  • The robotic total station adjust the position to calculate and display exactly the position using the laser pointer.

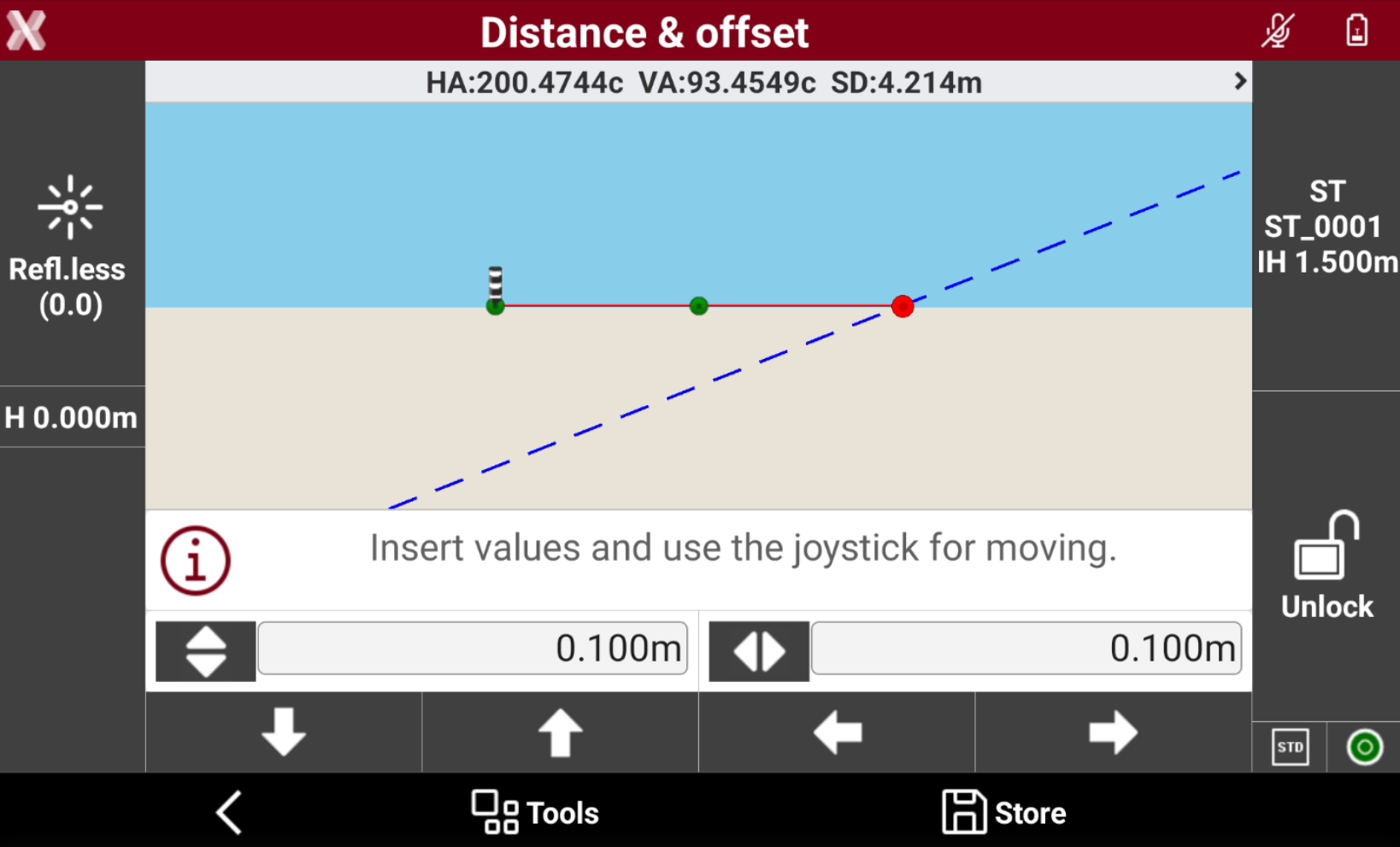

  • Continue to use the arrows to change the offset and display additional points.
