Auto Measuring report

automeasuring

  • In the Report page it is possible:

    • To see the result of the sessions.

    • Export manually the result.

    • Create a new customized export template.

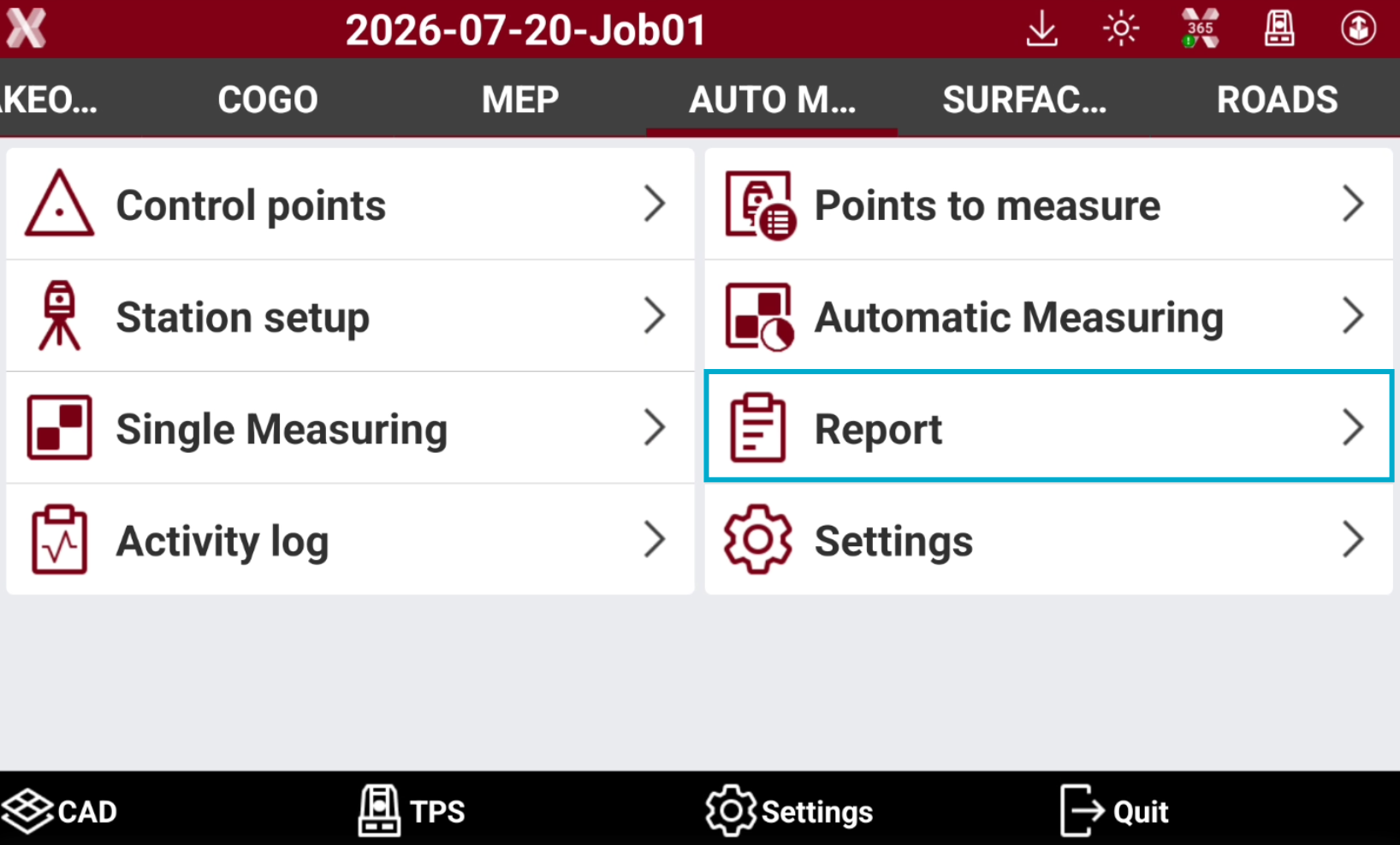

  • From the Auto Measuring page select Report.

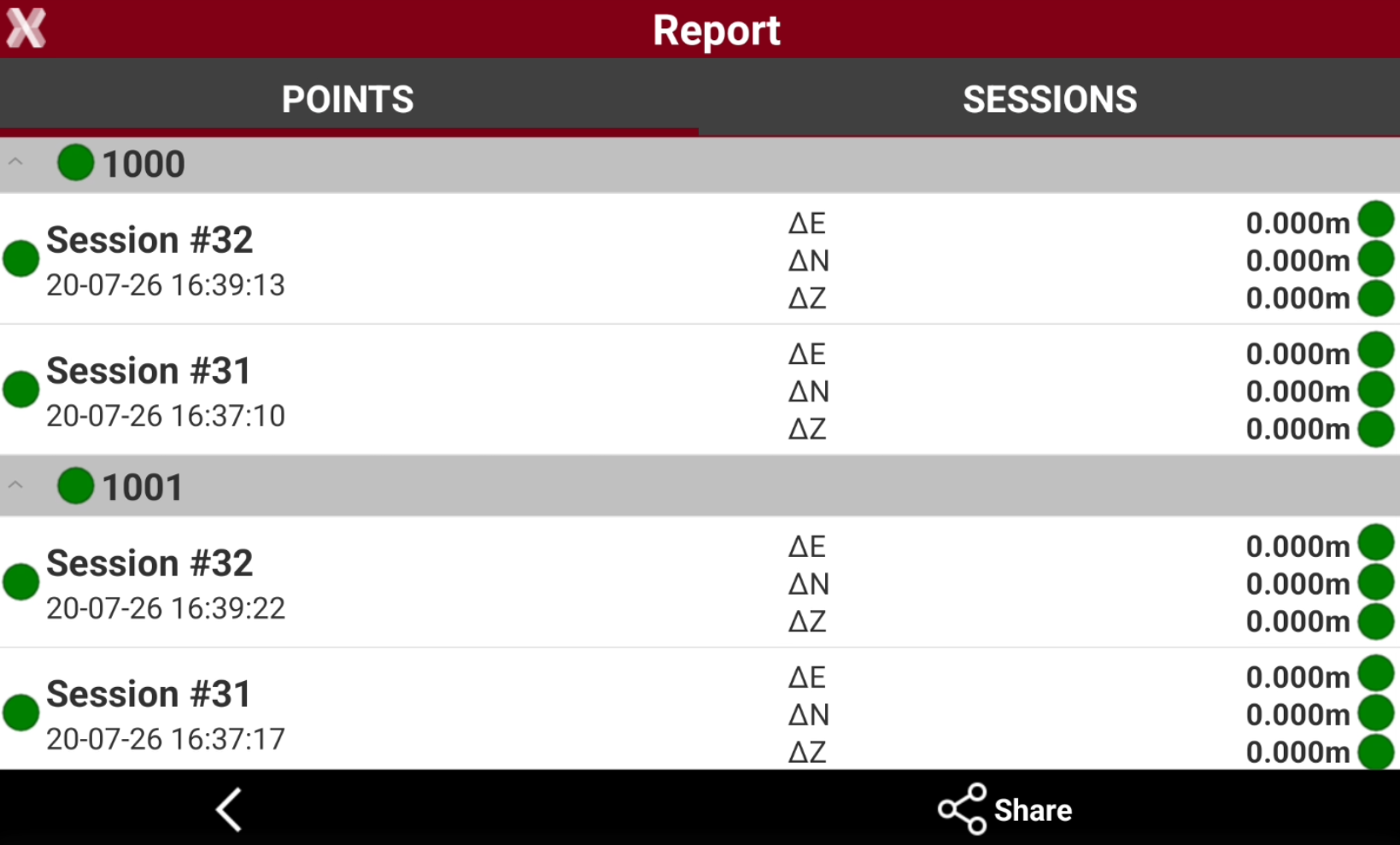

Measurements result

  • The results are available in the Points tab and Sessions tab.

    • Points tab: results are organized by point name.

    • Sessions tab: results are organized by session number.

  • For each point the difference from the calculated coordinate and the reference coordinate is calculated.


    • image-20250724-083338.png : the value is within the tolerance.

    • image-20250724-083410.png : the value is outside the tolerance.

Export the result

  • To export the result select Share.

  • Select the format to export.

    • Excel CSV: data is exported in a CSV file that can be opened with a text editor or Excel.

    • Excel XML: data is exported in a XML file compatible with Excel.

    • Text file (ASCII): data is exported in ASCII, it is possible to customize the information to export. For more information on how customize an ASCII please refer to Export ASCII.

    • Vista Data Vision: data is exported in a text format compatible with the office software Vista Data Vision.

  • For more information on the export procedure please refer to Export and share .

Create an export format

  • From the Report page it is also possible to define a new format, that can be used to generate the automatic report at the end of each monitoring cycle.

  • Select Share.

  • Select Text file (ASCII).

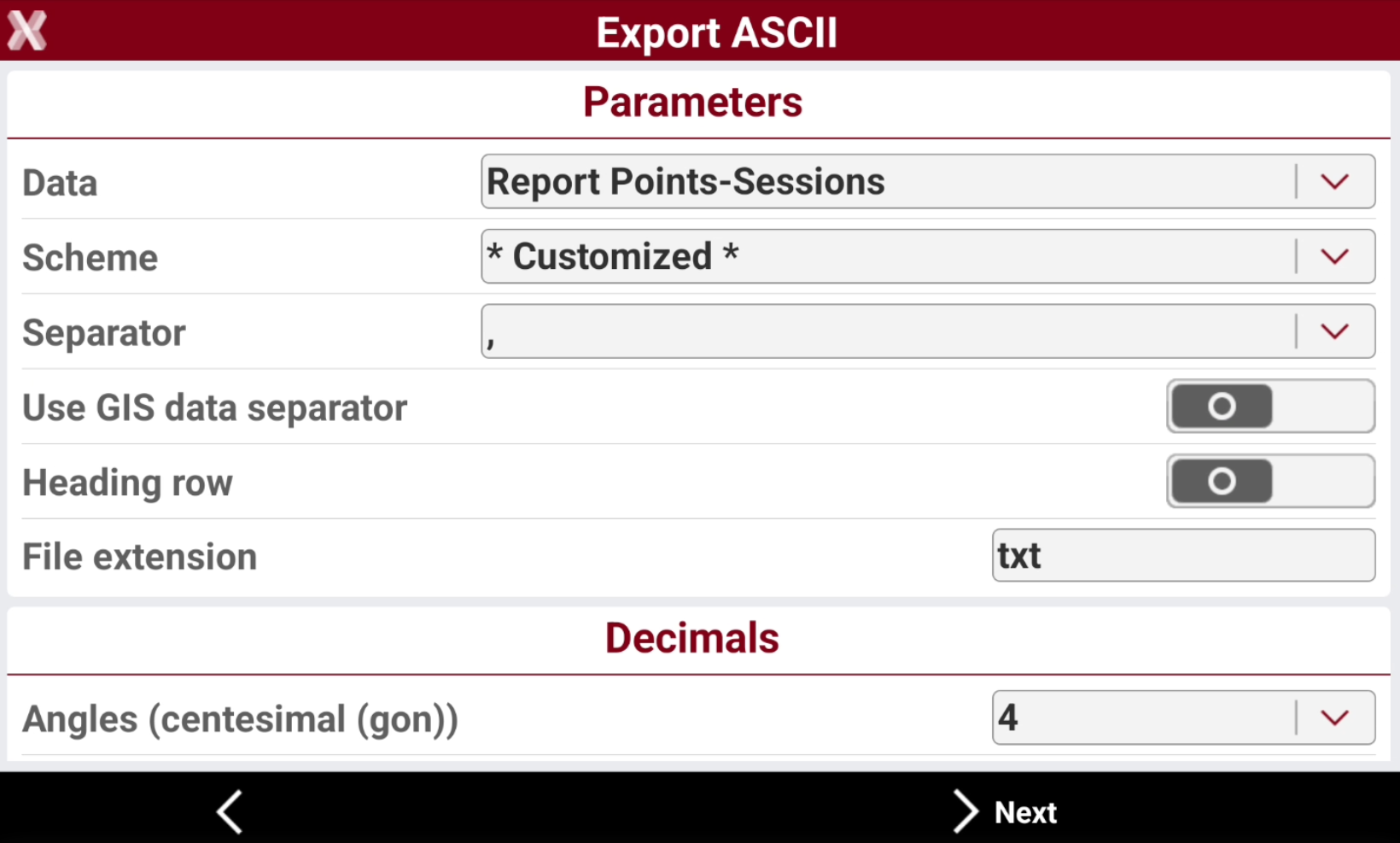

  • The Export ASCII page is opened.


    • Data: how the report data is organized and what data is included.

      • Report Points-Sessions: the information in the report are divided by the point name.

      • Report Sessions-Points: the information in the report are divided by the session number.

      • TPS Measurements: the report lists all the raw TPS measurements with angles, distances, etc. This includes the measurements to the control points.

      • Report all Points-Sessions: export all sessions with information in the report are divided by the point name.

    • Scheme: allows to select a saved customized scheme or create a new scheme selecting Customized.

    • Separator: the separator to be used between the export fields.

    • Use GIS data separator: not used.

    • Heading row: enables the use of an heading row in the file.

    • File extension: the file extension to be used.

    • Decimals: allows to define the number of decimals for the numeric values.

    • Latitude/Longitude/Elevation: not used.

  • Press Next.

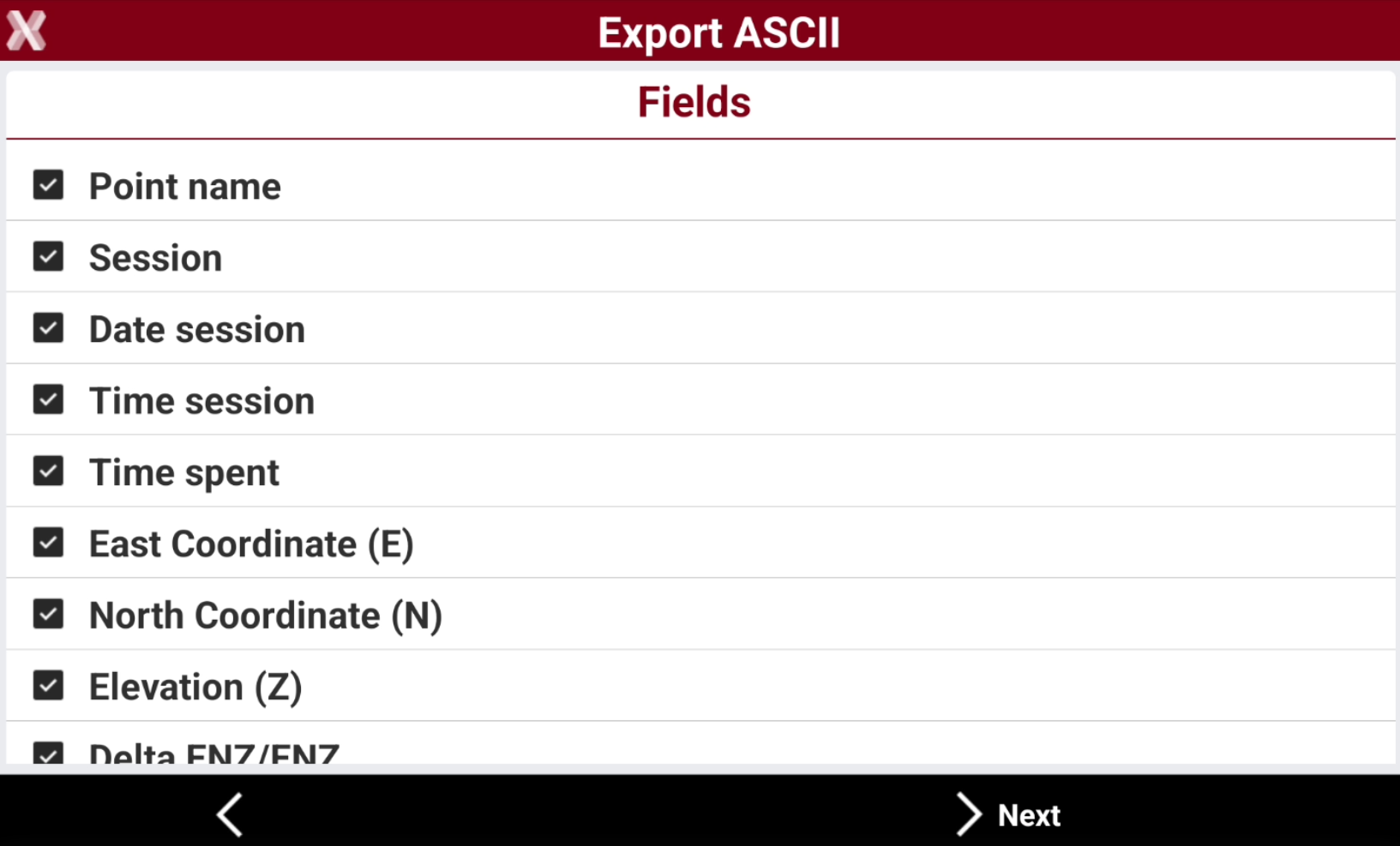

  • Define the fields to export.


  • Tap to enable/disable a field.

    • image-20250724-084850.png : the field will be exported.

    • image-20250724-084913.png : the field will not be exported.

  • Select a field and press Down or Up to change the export order.

  • Press Next to have a preview of the export.

  • Press Next.

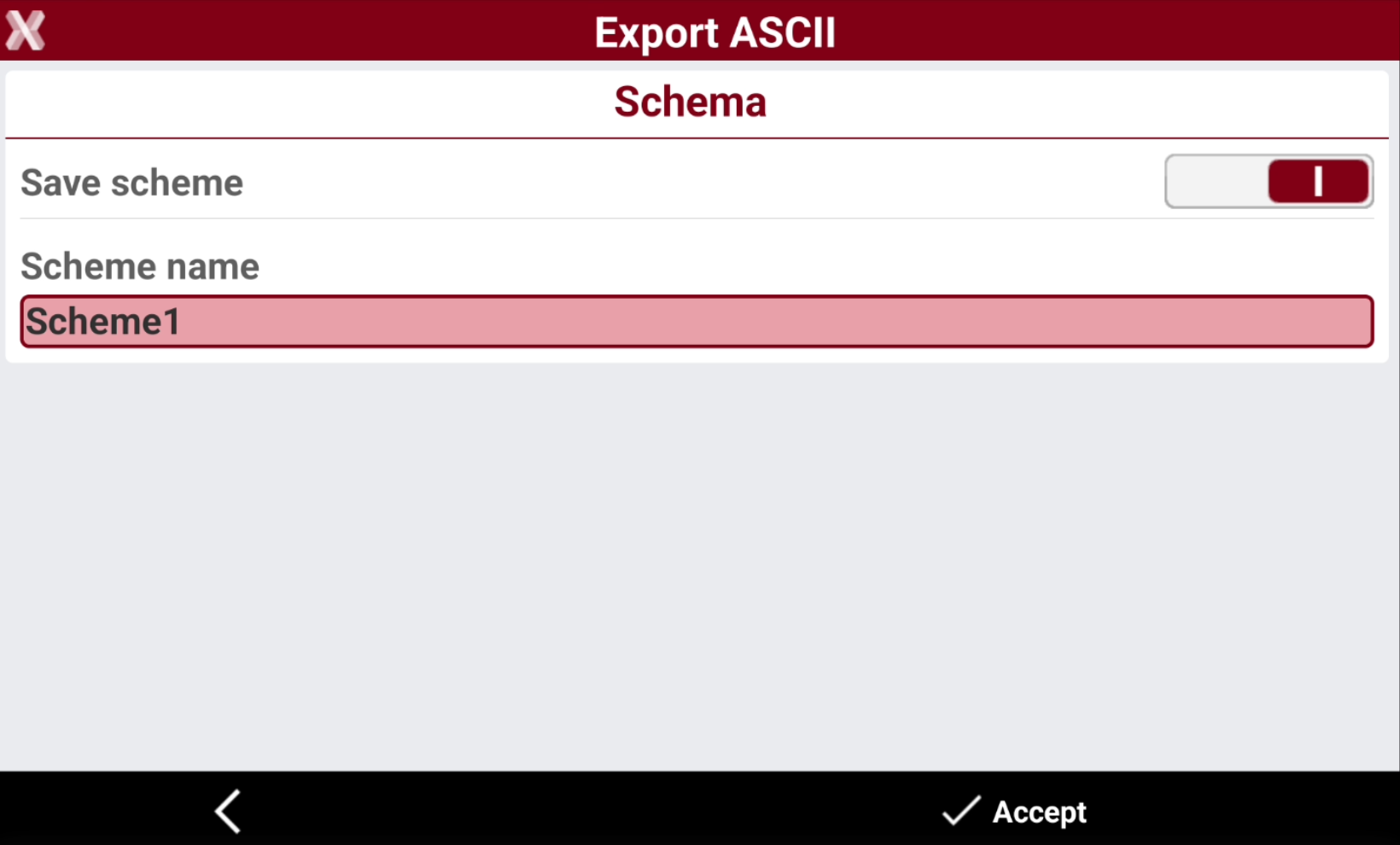

  • If the created export scheme want to be used in the data report save the scheme with a name.


  • Press Accept to save the file.

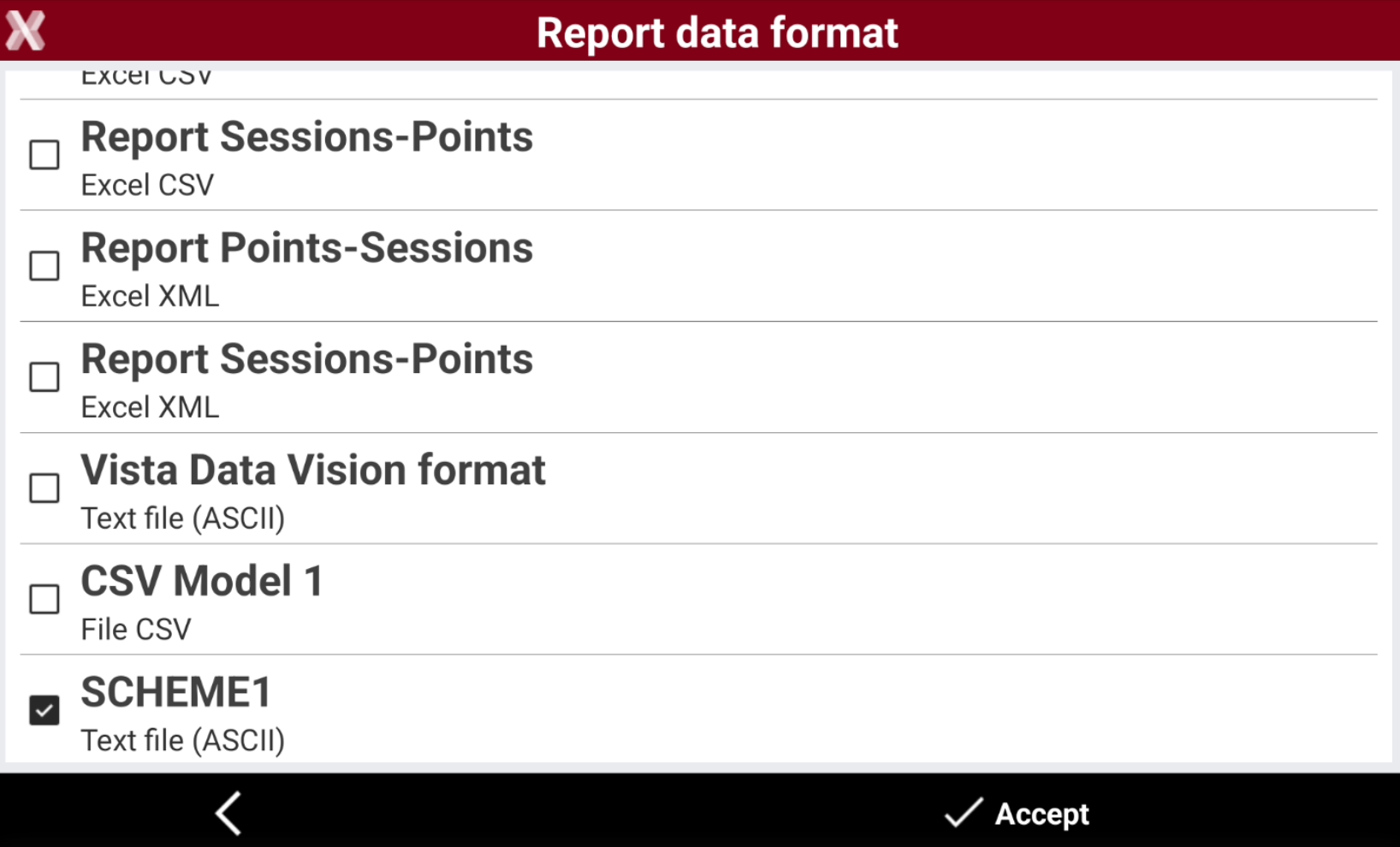

  • The Scheme can now be selected in Settings → Send data → Format to be used when generating automatically the measurements report.
