Select a file

  • When a file has to be selected, for example when it is imported or selected as external document, the following page is opened.

  • It is possible to select a file from internal memory, USB pen drive or a cloud storage.


Select a file from internal memory or USB

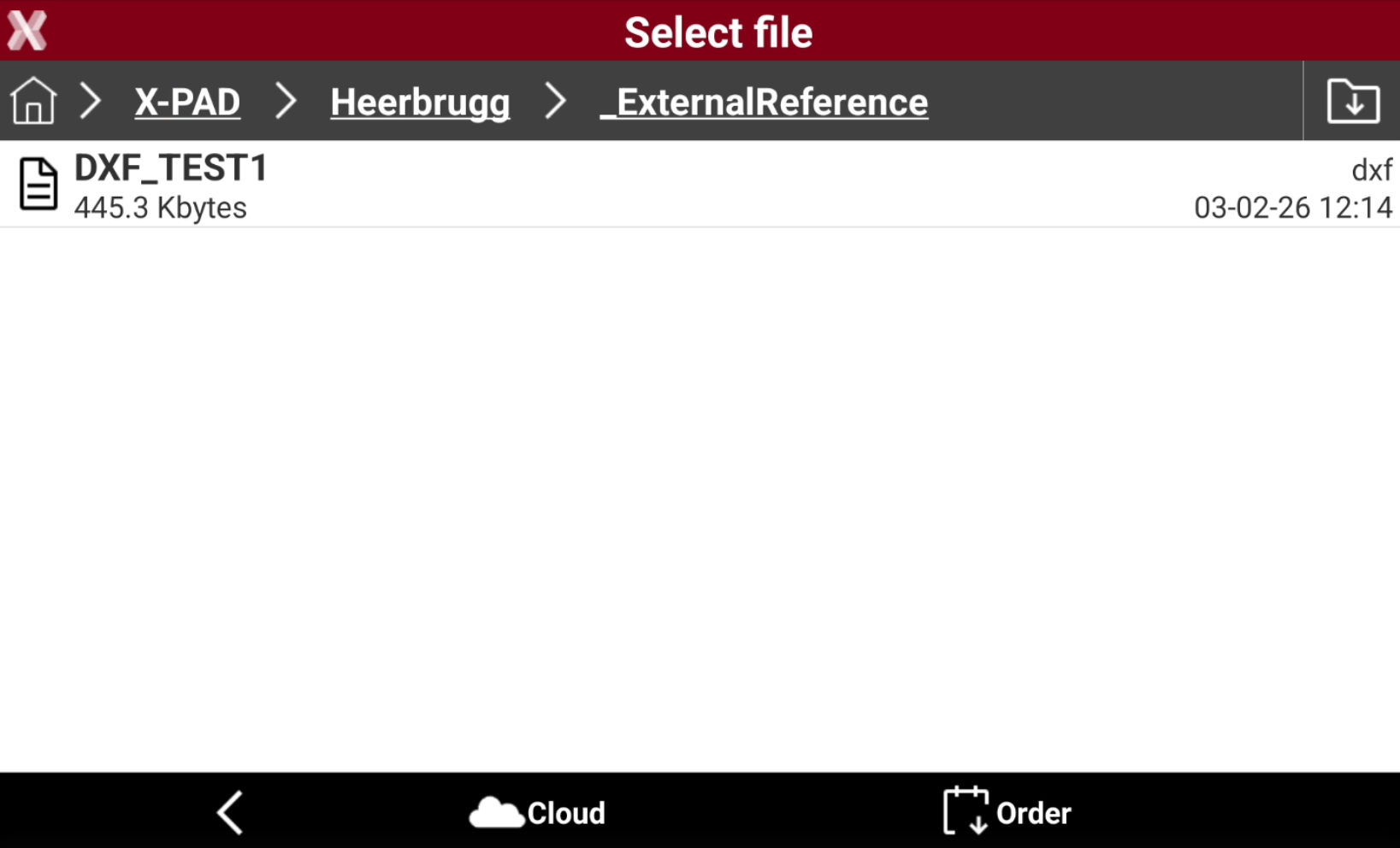

  • The page shows the selected folder in the internal memory in the top bar.

  • The current path is displayed as separated links that allow to quickly jump to the main folder or to any other folder.


  • The page shows the folders and files in the selected folder.

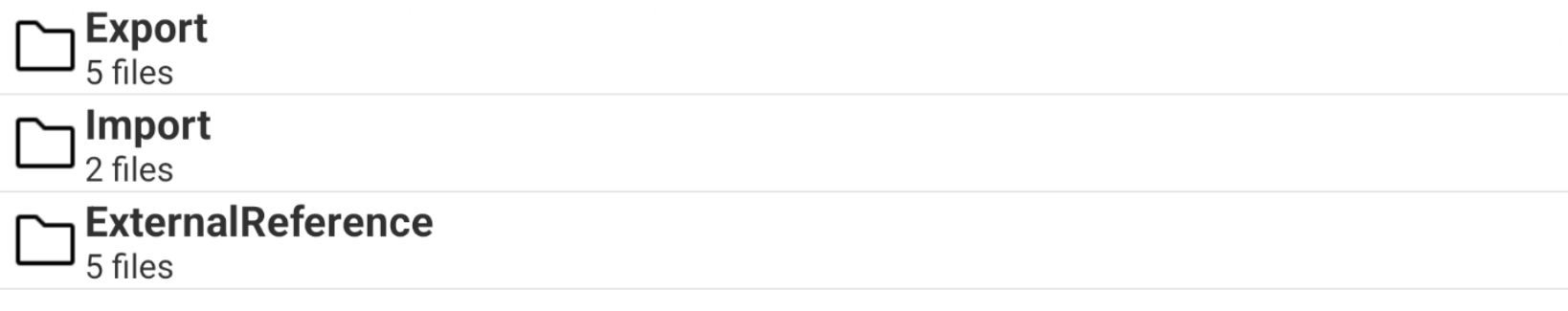

The software displays only the files with the correct extension. For example when importing a DXF/DWG file, only files with DXF/DWG extension are visualized. The software shows the number of files with correct extension in the sub folders.

  • Press USB icon to open the USB memory, in case a USB pen drive is connected to the controller.


  • Press Download icon to open the internal memory Download folder.


  • Press Order icon to change the visualization order of the files.

  • Tap on a file to select it.

Select a file from cloud storage

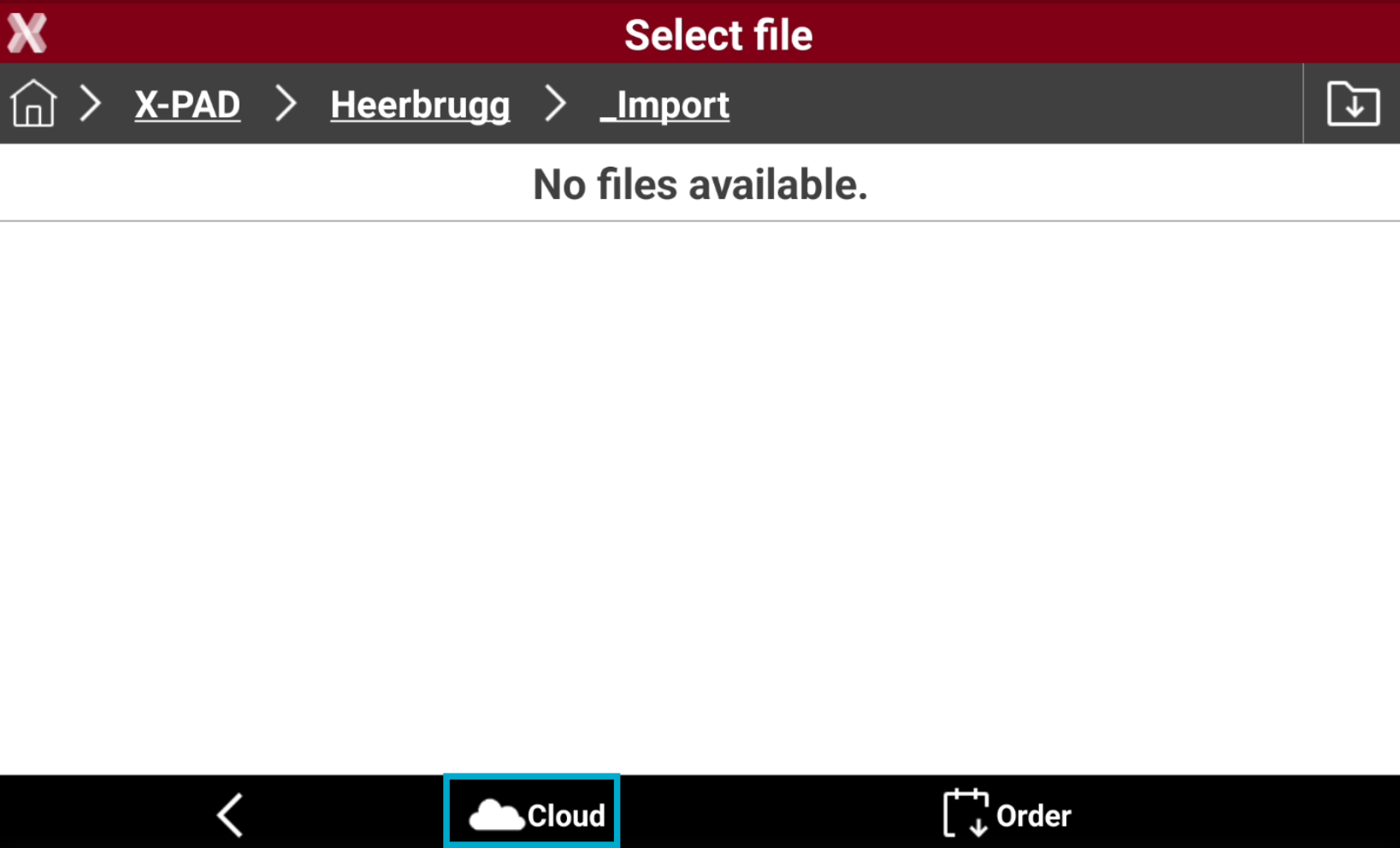

  • To select a file from a cloud storage press Cloud.

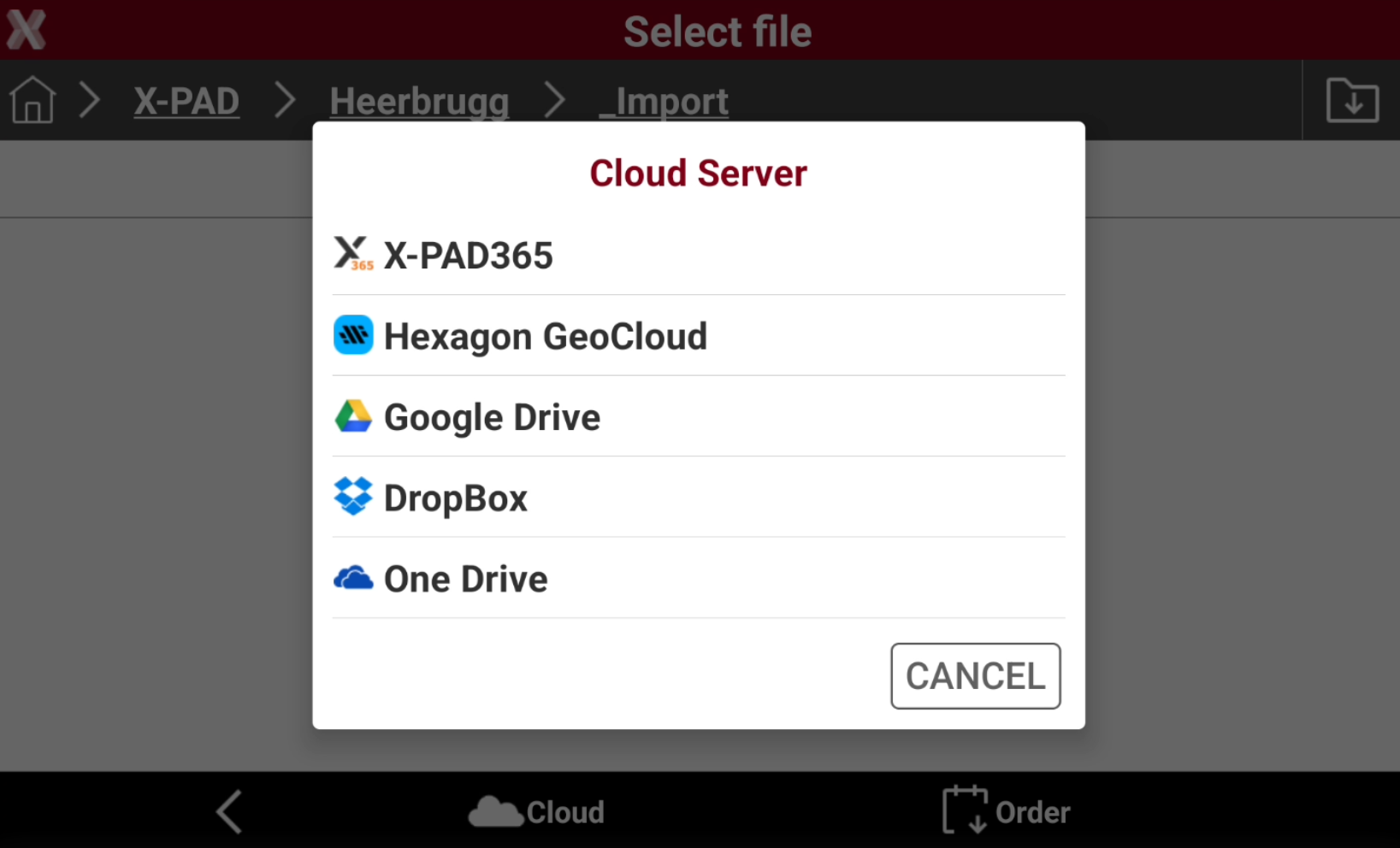

  • Select the Cloud server.


It is possible to enable and login in cloud servers from Cloud settings.

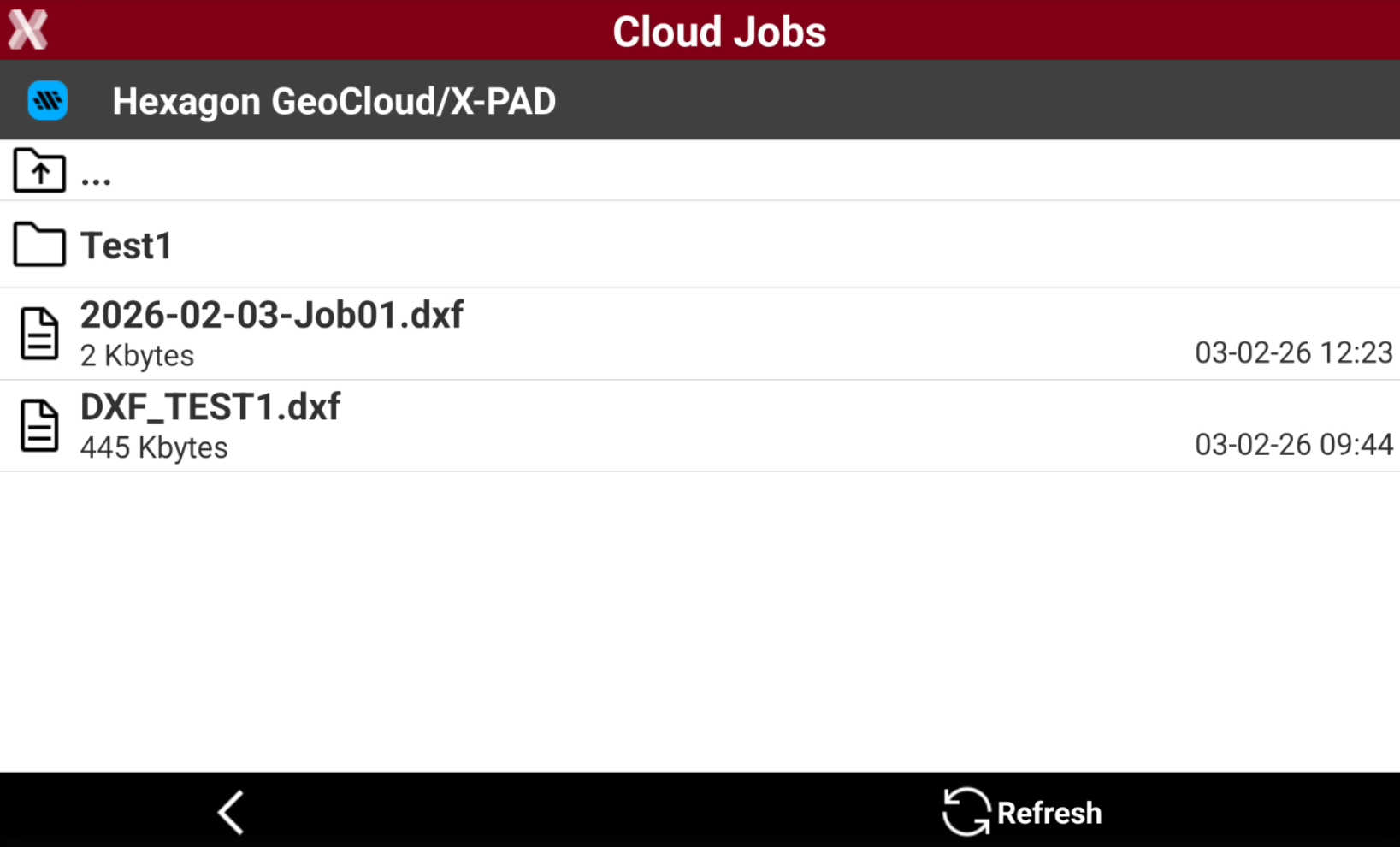

  • Select the path in the cloud storage to visualize the files to select.


  • The top bar shows the selected folder.

  • Press Refresh to reload the files.

  • Press on a file to select it.
