Info functions

  • Information commands allow to obtain different information from drawing and from present objects.

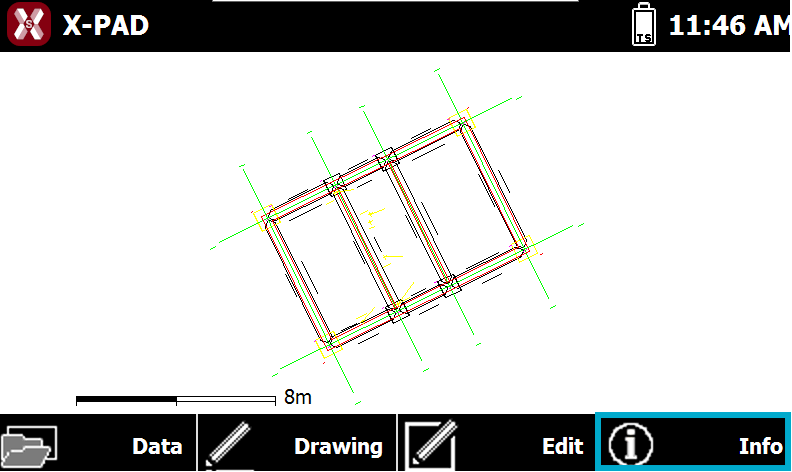

  • To access the editing commands press Info.

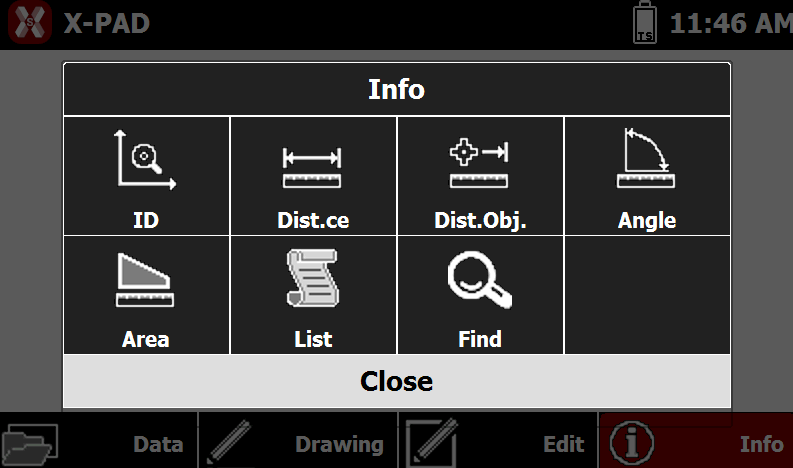

  • This opens a table with the available information functions.


    • ID: indicate a position in CAD to display the coordinates.

    • Distance: returns some information on distance between two selected points.

    • Distance object: returns some information on distance between a point and an object.

    • Angle: returns the angle contained among three points.

    • Area: returns the area of polygon identified by a sequence of points.

    • List: returns general information on selected object.

    • Find: centers the graphic window to the entered topographic point.
