Road manager

ROAD

  • The Road manager is the control panel of all data of the road project.

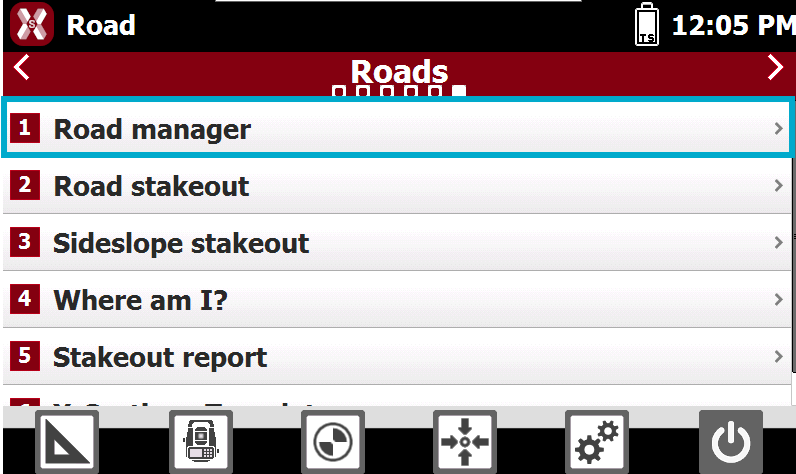

  • From the Road page select Road manager.

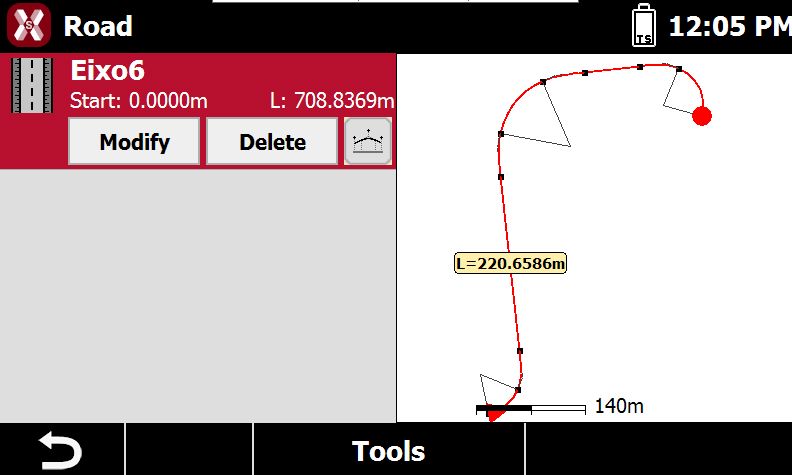

  • The page lists all the roads available in the job. Tap on a road to show the preview.


  • The preview panel has a graphical view of the selected road with all its elements.

    • Press image-20260804-094544.png to visualize the vertical alignment.

Import road data

  • To import road data from external file press Tools.

  • Select Import road data.

  • Refer to Import road data.

Display options

  • The road can be imported with several axis.

  • In this case it is possible to select if display only the centerline or also the other axis in the road manager.

  • Press Tools.

    • Press Display axis only to display only the centerline.

    • Press Display all to display all axis.

Delete a road

  • To delete a road select the road in the Road manager.

  • Press Delete.
