The External references page lists all the external references linked to the job and allows to create new links.
External references list
-

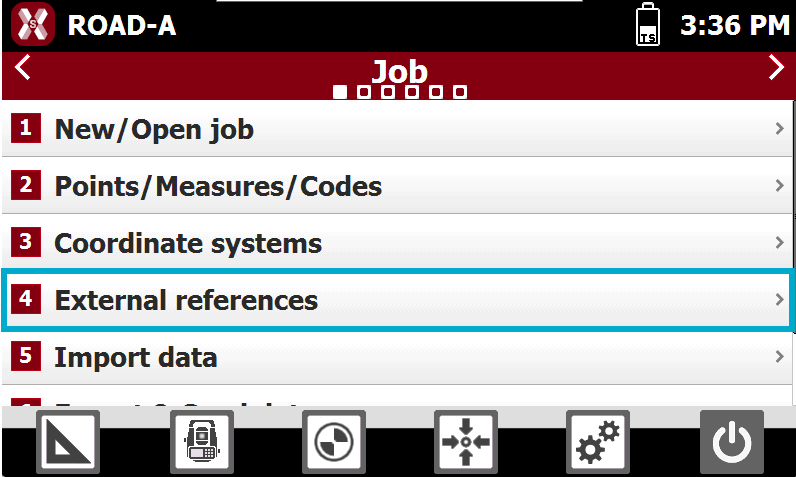

From the Job page select External references.
-

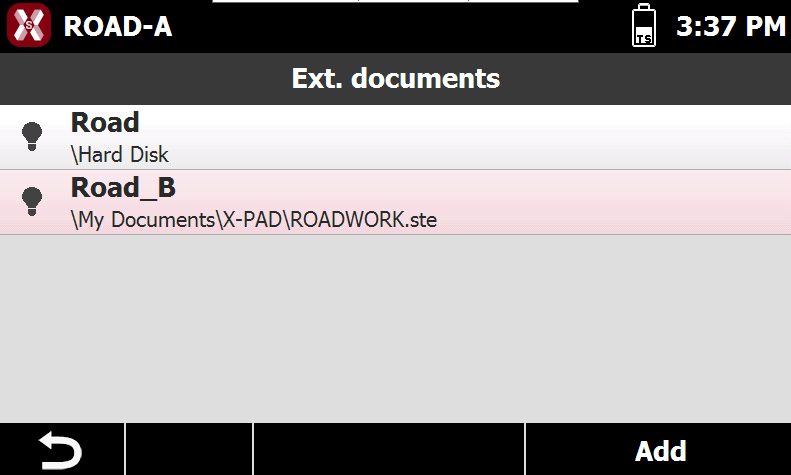

The page lists the loaded external references.
Add an external reference
-

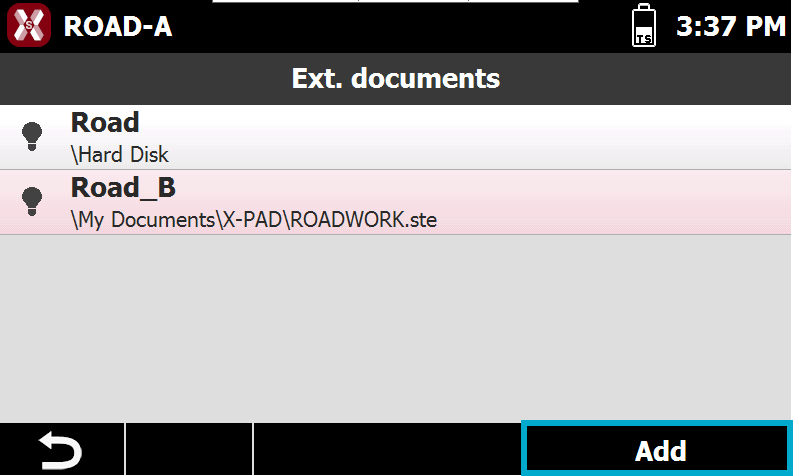

To add an external reference press Add.
-
Select the file format to add. Refer to Load an external reference for more detail on supported files.
-
Select the location of the file and click on the file.
-
Select the options depending on the selected format and press Accept.
-
The reference file is added to the list and loaded.
Change external file visibility
-
It is possible to change the visibility of each loaded external reference.
-
From the list of external reference click the corresponding icon to change the visibility:
-
-
-
Delete an external reference
-
To delete an external reference, select the external reference from the External documents page.
-

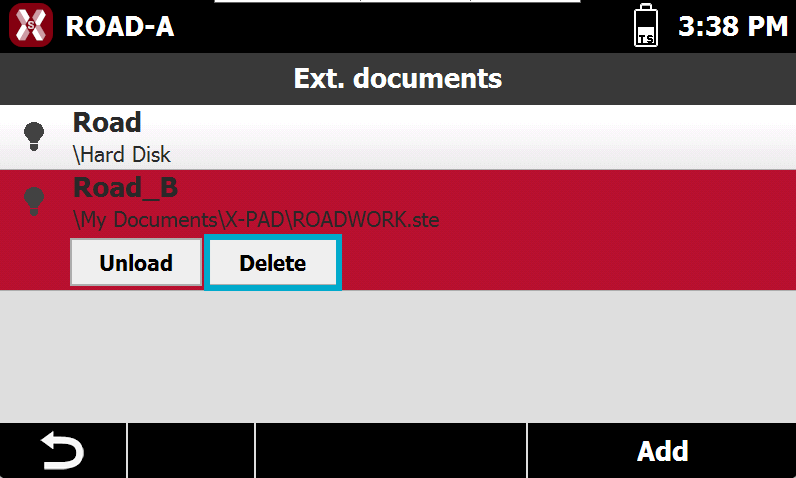

Press Delete from the context menu to delete the link to the external document.
Re-establish a link to an external document
-
An external document can change the storage path and be present in another folder.
-
If the link to a document is missing, the external document shows this icon and it is in grey.
-

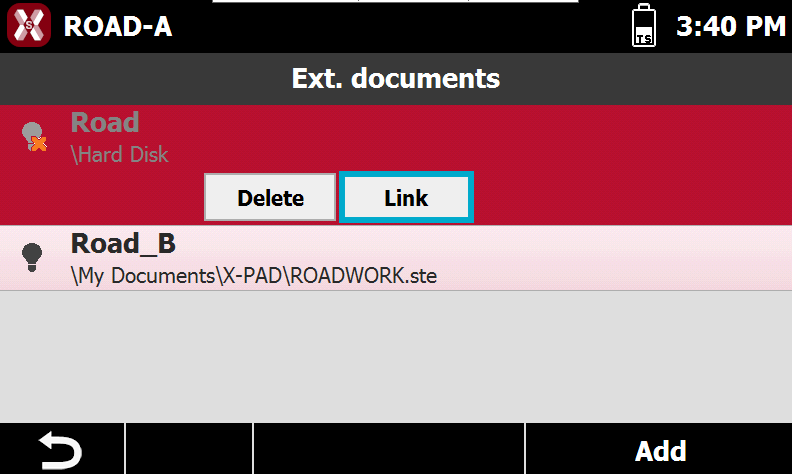

Select the external document and select Link from the context menu.
-
Specify the new file path and select again the document.
Load/unload an external document
-
An external document can be unloaded or loaded.
-
If a document is loaded, the data is loaded in the memory and to the current document. If a document is unloaded, it is removed from the memory.
-
To load or unload an external document, from the External documents page select the reference.
-
Press Load or Unload from the context menu.
